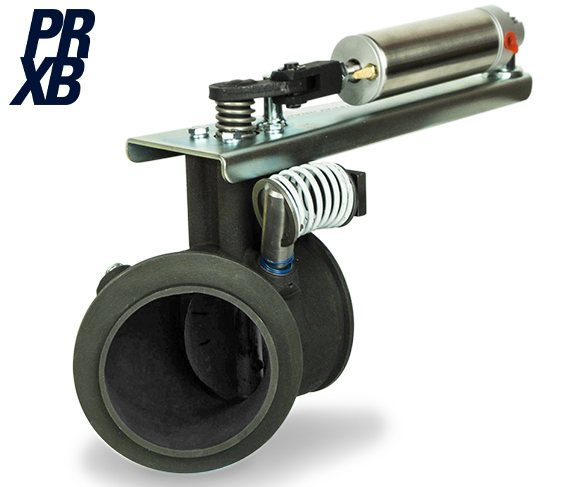

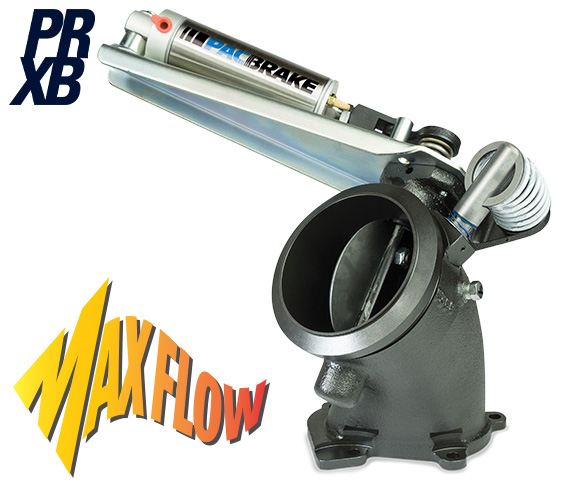

Pacbrake C44072 Direct Mount 4 inch PRXB Exhaust Brake Kit w/ Max Flow Design for 94-98 Dodge/RAM 5.9L 6BT

• Provides 50 percent More Braking Power at Lower RPM's. PRXB gives you the best holdback in the 1400-1800 RPM range (where you typically drive).

• The spring controlled pressure regulated mechanism on the exhaust brakes protects against engine overpressure.

• When the brake is deactivated, exhaust flow is unrestricted and won't interfere with power output.

• Patented 90 degree Non-contacting Butterfly Valve is specially engineered to maximize backpressure while preventing seizing.

• The brakes use industry exclusive Arcor nitride coating on housing and components which increases resistance to wear and corrosion while strengthening the exhaust brake and adding lubricity.

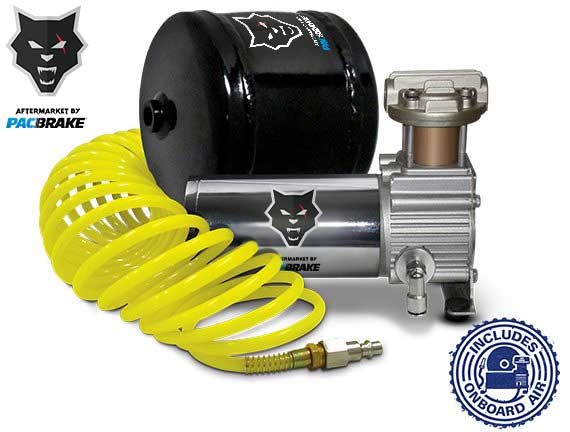

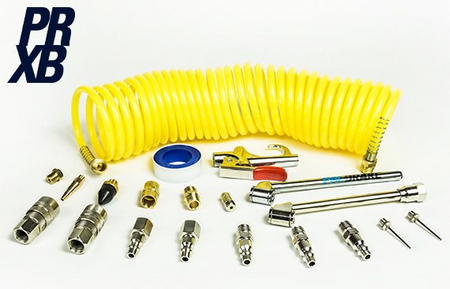

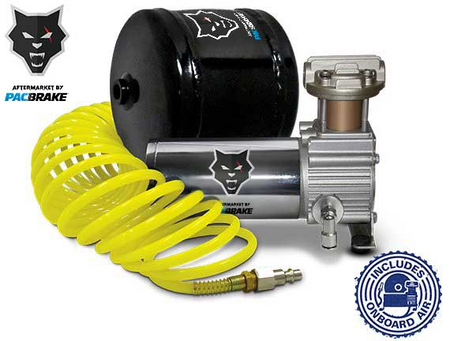

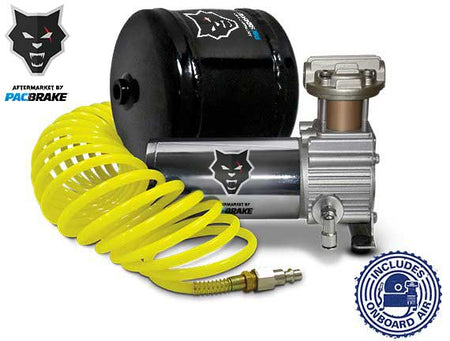

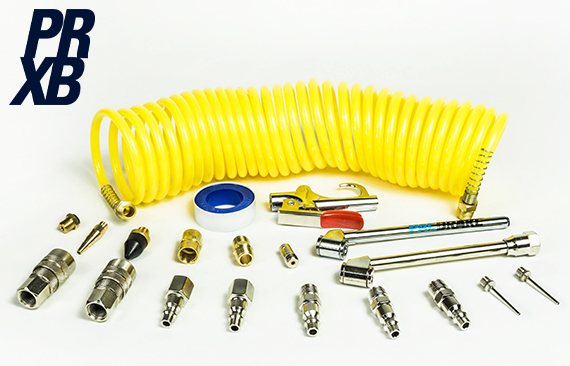

Every PRXB Automotive Kit comes with everything required for a complete installation. PRXB Exhaust Brake, Controller (when required for application) and Pacbrake Onboard Air Kit, which includes: HP325 Series Compressor, 0.5 Gal Air Tank, 25 Foot Coiled Air Hose, Air Accessories and Fittings Kit.

Air Actuated - Comes with Air Tank, Hose and Accessories. Includes Heavy Duty Exhaust Valve Springs.

Optional Parts:

• Switch Pac: Optional (Pacbrake Part Number C18040).
• ECM Bypass: N/A

Details:

• Application: Dodge 1994-1998 5.9L 6BT 12 Valve Engine
• Size: 4.0 Inch
• Hose Length: 25 Foot
• Hose Type: Coiled
• Capacity: .5 Gallon
• Mount: Direct Mount
• Valve: 12 Valve
• Engine Years: 1994-1998
• Liters: 5.9 Liter

Please Note: This kit is not legal for sale or use in California. This kit may not meet emission standards for your area. Check your local regulations prior to installing.

Vehicle Application

1994-1998 Dodge RAM 5.9L 6BT 12 Valve Engine with 3'' Stock Exhaust with HX/HY35 Turbo with Standard Transmission. (MAX FLOW DESIGN)

Application Notes
