AirDog II-5G, DF-100-5G for 98.5-04 Dodge/RAM Cummins 5.9L w/ In-Tank Fuel Pump
Couldn't load pickup availability
About

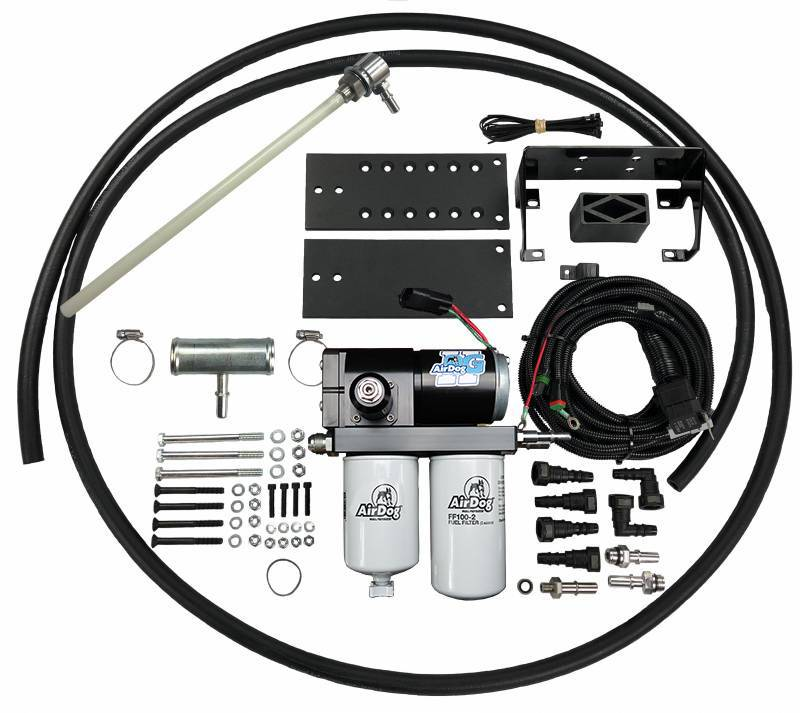

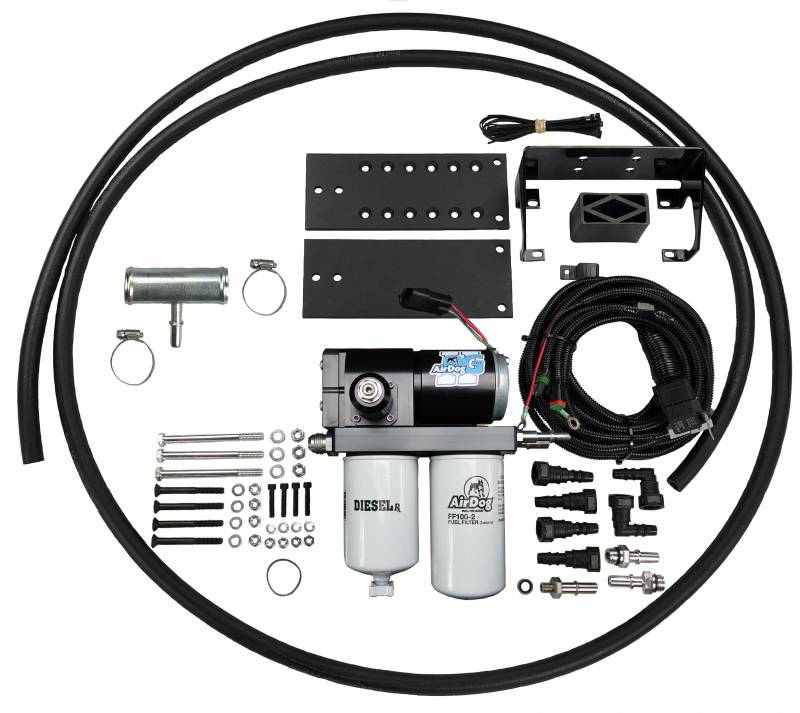

This is the AirDog® II-5G DF-100 fuel system for the 1998.5-2004 Dodge Ram VP-44 and early CP3 5.9L Cummins WITH the in-tank fuel pump. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2" bulkhead fitting. This will bypass the factory in-tank lift pump. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing. The AirDog® Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out the installation manual for a list of parts that are included with this kit.
Fitment
1998.5-2004 Dodge/RAM VP-44 and early CP3 5.9L Cummins WITH the in-tank fuel pump
