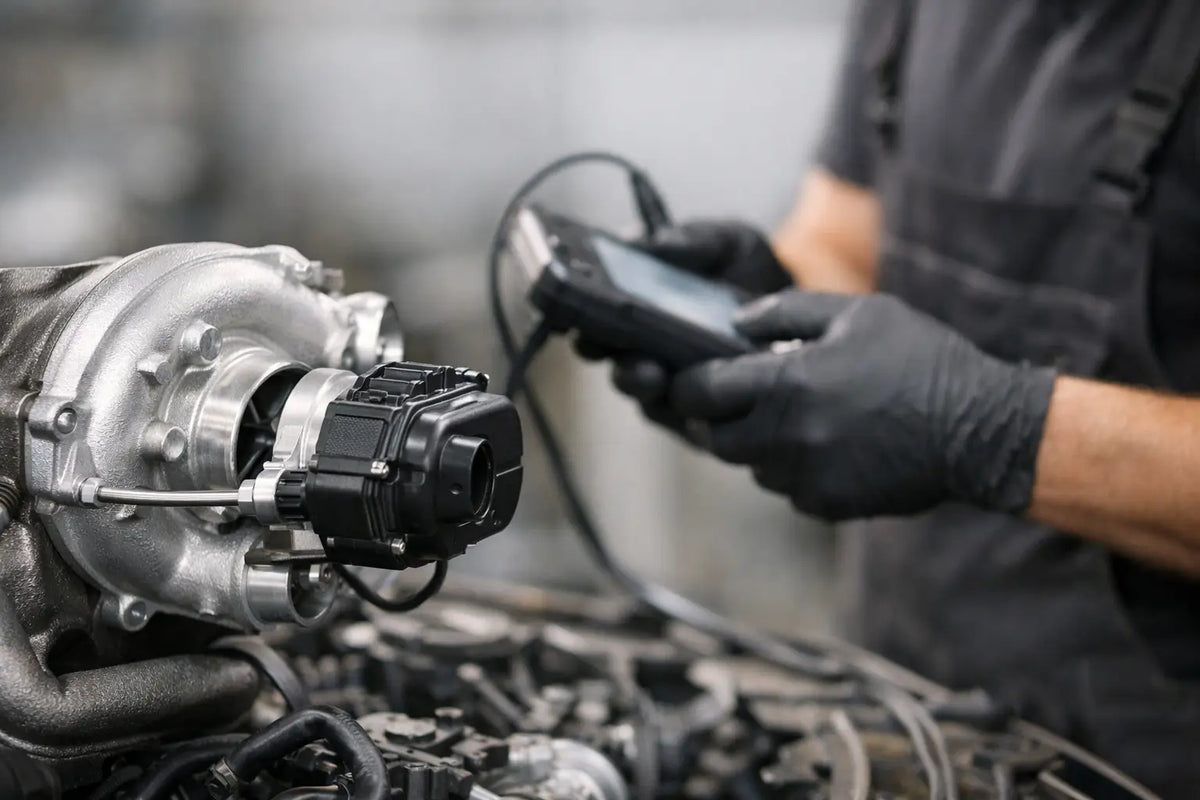

A truck that suddenly falls on its face under load, throws a reduced-power message, or starts hunting for boost is not automatically due for a turbocharger. Knowing how to troubleshoot turbo actuator failure can save you from replacing expensive parts before the real problem is found. On modern variable-geometry turbo systems, the actuator, turbo vanes, wiring, exhaust backpressure, and ECM strategy all work together. A failure in any one of them can look like an actuator problem.
For working trucks, towing rigs, and fleet units, the goal is not to guess. It is to identify whether the actuator cannot move the turbo, is being told not to move it, or is reporting bad information back to the ECM.
Start With the Complaint and the Codes
Before touching the actuator, get a complete scan. Record active, pending, and history codes, plus freeze-frame data if your scan tool supports it. Turbo actuator-related faults commonly show up as underboost, overboost, vane-position, actuator circuit, actuator performance, or calibration codes. The exact code definitions vary by Cummins, Duramax, Powerstroke, and medium-duty application, so diagnose by the manufacturer’s service information for that engine.
Do not stop at the turbo code. A boost-related complaint can also be caused by an exhaust leak before the turbo, a split charge-air boot, a plugged air filter, a restricted exhaust system, a bad MAP sensor, or an EGR-related issue. If the truck has a DPF, check soot load, differential pressure readings, and regeneration history. Excessive exhaust restriction changes drive pressure and turbo response, which can make a good actuator appear faulty.
Look at live data with the engine idling, during a controlled snap throttle test, and on a road test when safe. Compare desired vane position or actuator command with actual vane position. If the ECM commands movement but actual position does not follow, you are narrowing the problem toward the actuator, its wiring, or a sticking vane mechanism. If desired position never changes when operating conditions change, the ECM may be limiting turbo control because of another fault.
Inspect the Simple Failures First
Diesel trucks live in heat, vibration, water, road salt, and oil vapor. A five-minute visual inspection often finds the issue before a turbocharger comes apart.
Check the actuator connector for moisture, green corrosion, pushed-back terminals, loose pin fit, melted plastic, or damaged seals. Follow the harness as far as practical. Pay close attention where it runs near the exhaust, turbo pedestal, valve cover, heat shield, and sharp bracket edges. A harness can look fine until it is moved by hand, then reveal broken insulation or a wire that has rubbed through.
Inspect the intake and exhaust sides of the system at the same time. Look for loose clamps, oil-soaked or ballooned intercooler boots, cracked plastic charge pipes, black soot around exhaust joints, and leaks at the manifold or turbo mounting area. A pre-turbo exhaust leak reduces the energy available to drive the turbine. A boost leak after the compressor makes the turbo work harder while the engine still sees low manifold pressure.
Also verify battery voltage and charging-system health. Electronic actuators are sensitive to low voltage, especially during cranking. Weak batteries, poor grounds, and voltage drop through corroded cables can create intermittent actuator and communication faults that disappear once the truck is running.
Test Power, Ground, and Communication
An electronic VGT actuator needs more than a clean connector. It needs proper power, ground, and communication with the ECM. Depending on the platform, that may include battery feed, ignition feed, sensor reference circuits, and CAN communication wiring.
Use a wiring diagram specific to the truck. Backprobe carefully rather than forcing oversized test leads into terminals. Verify power with the circuit loaded when possible. A digital meter may show battery voltage on an unloaded wire that cannot carry enough current once the actuator is commanded to operate. Voltage-drop testing is more useful than a simple continuity test for power and ground circuits.
Check grounds from the actuator circuit back to the engine and battery. High resistance at an engine ground can cause erratic actuator movement, sensor readings, and communication issues. On fleet trucks and older pickups, grounds deserve extra attention after batteries, starters, engine work, or body repairs.
If the system uses CAN communication, do not probe or jumper data circuits casually. A scan tool that loses communication with the actuator while the ECM remains online points toward a wiring issue, connector problem, actuator electronics failure, or a network fault. Follow the proper test procedure before condemning the unit.
Vacuum-Operated Actuators Need a Different Test
Not every turbo actuator is electronic. Some systems use vacuum diaphragms and solenoids to move a wastegate or vane mechanism. On these setups, inspect vacuum hoses for cracks, soft spots, loose connections, and oil contamination. Use a hand vacuum pump to see whether the actuator holds vacuum and moves smoothly through its travel.
If it will not hold vacuum, the diaphragm may be ruptured. If it holds vacuum but does not move the linkage, the linkage or turbo mechanism may be seized. If the actuator works with a hand pump but not under engine control, test the vacuum supply, control solenoid, and command signal.
Separate a Bad Actuator From Sticking Turbo Vanes
This is where many repairs go wrong. A failed actuator and stuck variable vanes can produce nearly identical codes and symptoms. Replacing only the actuator will not fix a turbo whose unison ring or vane mechanism is carboned up, corroded, or mechanically damaged.
With the correct scan tool, run the manufacturer’s actuator or vane sweep test. Watch commanded and actual position while listening for smooth, consistent movement. Clicking, grinding, repeated cycling, or a position that hangs at one point can indicate mechanical resistance or internal actuator gear damage.
Some turbochargers allow limited mechanical inspection once the actuator is removed. This is platform-specific work. Do not force the lever or rotate components beyond their designed range. If the linkage is stiff, binds, or will not travel smoothly, the turbo mechanism needs closer inspection. On a high-mileage truck that has spent years short-tripping, idling, or dealing with emissions faults, carbon buildup in the vane assembly is a realistic possibility.
There is a trade-off here. In some cases, a serviceable actuator and calibration restore the system. In others, installing a new actuator on a worn or sticking turbo only delays the next breakdown. If shaft play, compressor damage, turbine damage, oil contamination, or vane binding is present, a complete turbocharger repair is usually the more reliable decision.
Calibration Is Part of the Repair
Many electronic turbo actuators cannot simply be bolted on and driven. They require an installation, relearn, or calibration procedure with a capable scan tool. The ECM must learn the actuator’s end stops and confirm the relationship between motor position and vane position.
Skipping calibration can cause immediate codes, incorrect boost control, limp mode, or damage to the new part. The same applies when an actuator has been removed and reinstalled on certain applications. Follow the procedure for the exact year, engine, turbo, and actuator part number.
Be cautious with used actuators. Even if the connector fits, the internal calibration, software, gear position, and turbo application may not match. A low-cost used part can become expensive after repeat labor, repeated codes, or an overboost event. For trucks that work for a living, correct application and proper setup matter more than saving a few dollars on the first purchase.
Verify the Repair Under Real Load
Clearing codes in the parking lot is not a repair verification. After wiring repairs, actuator replacement, calibration, or turbo replacement, warm the engine fully and road-test the truck under conditions that previously caused the complaint. Watch desired versus actual boost, vane position, exhaust temperature where available, and related sensor data.
A towing or hauling truck may behave normally empty but fail when drive pressure and boost demand rise. Use a controlled test route and do not push the engine with an active overboost or underboost condition. Recheck for leaks and pending codes after the drive cycle.
Gillett Diesel Service has seen plenty of turbo complaints turn out to be wiring, air leaks, sensor faults, or sticking vane assemblies rather than a simple actuator failure. The right diagnosis protects your budget, but more importantly, it protects the uptime your truck is supposed to deliver. When the evidence points to the actuator, install the correct part, calibrate it properly, and make sure the turbo itself moves as it should before putting the truck back to work.
