A loaded truck that falls flat on a grade, cranks too long after a fuel filter change, or drops into reduced power can point to the same problem: the injection system cannot build or hold the pressure the ECM is requesting. What causes low fuel rail pressure is not always a failed high-pressure pump. On a modern diesel, the fault may begin at the tank, inside an injector, at a control valve, or in the wiring between the sensor and the ECM.
The right repair starts with separating a true low-pressure condition from a bad reading. Replacing expensive fuel-system parts without testing is a fast way to spend money and keep the truck down.

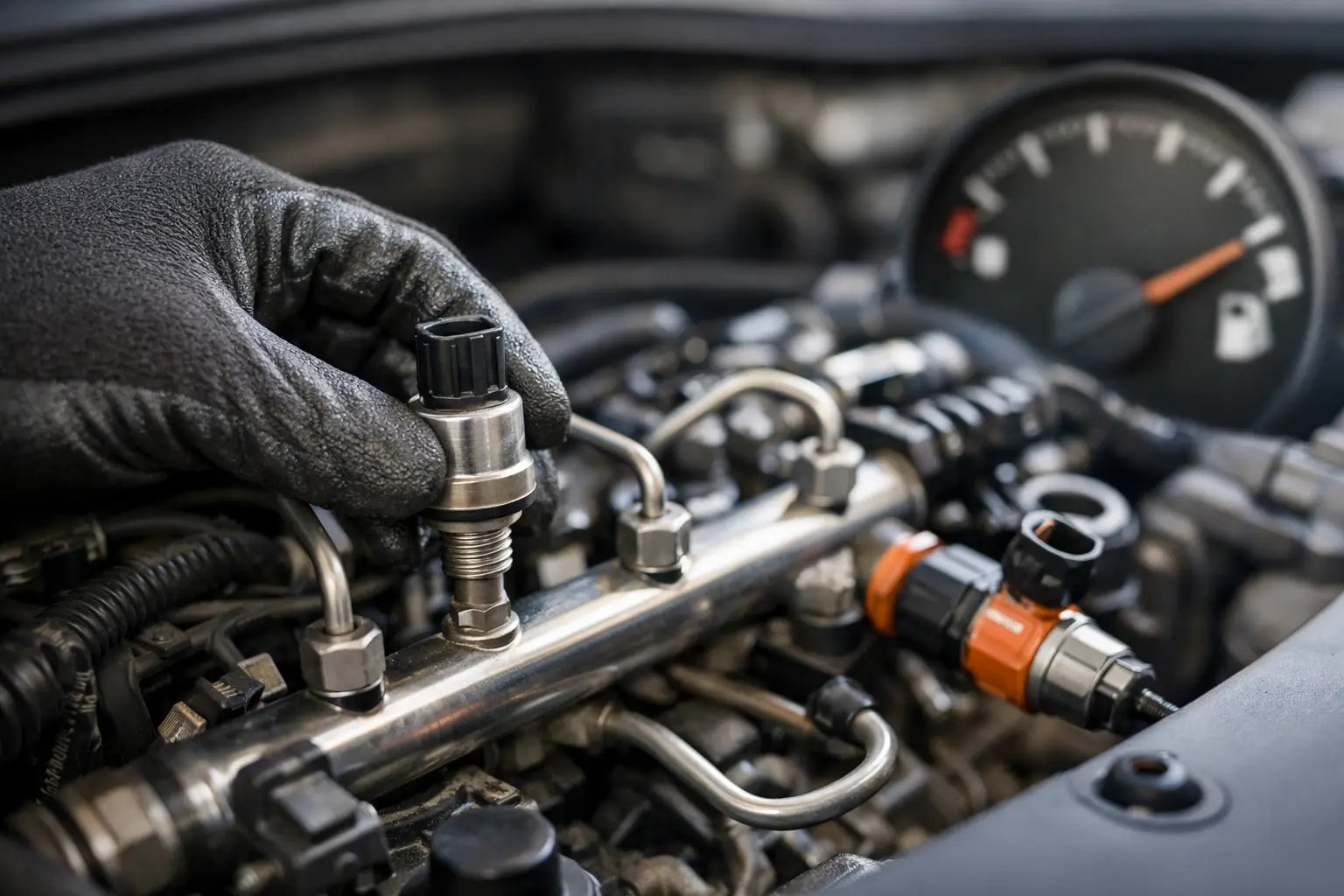

What Causes Low Fuel Rail Pressure?
Common-rail diesel engines need a steady supply of clean fuel and precise high-pressure control. The lift pump moves fuel from the tank to the high-pressure pump. The high-pressure pump then feeds the rail, where pressure can range from several thousand psi at idle to well over 20,000 psi under load, depending on the engine and calibration.
If the system cannot supply enough fuel, create enough pressure, or prevent fuel from escaping internally, actual rail pressure falls below commanded pressure. That difference is what often sets codes such as P0087, P0088, P0191, or platform-specific fuel-pressure codes.
The cause depends on the truck. A stock work truck with a neglected filter has a different likely failure than a tuned pickup with oversized injectors or a fleet truck that has seen questionable fuel. Still, most low rail pressure problems fall into a handful of areas.
Restricted Fuel Supply or a Weak Lift Pump
A plugged fuel filter is one of the most common and least expensive causes. Diesel fuel filters do more than catch dirt. They protect close-tolerance injection components from water and debris. As restriction increases, the lift pump may not be able to maintain adequate supply to the high-pressure side, especially under acceleration, towing, or heavy load.
Other supply-side restrictions include a collapsed hose, clogged tank pickup, blocked tank vent, damaged quick-connect fitting, contaminated fuel, or air entering through a loose filter cap or cracked line. Air leaks do not always leave a visible fuel leak. On the suction side of a system, they can pull air in and cause hard starts, surging, or pressure loss without dripping fuel on the ground.
A weak or failing lift pump can produce the same symptoms. This is especially relevant on platforms where the factory supply pump is marginal or where additional horsepower has increased fuel demand. Check supply pressure and volume against the specifications for that engine before condemning the injection pump.
Excessive Injector Return Flow
Injectors are designed to return a controlled amount of fuel to the tank for lubrication and internal cooling. When an injector wears internally, sticks, or is damaged by contamination, its return flow can become excessive. That fuel bypasses the rail instead of remaining available to build pressure.
Excessive return flow may cause long crank times, rough running, low power, or a no-start condition. It can be more noticeable when hot because internal clearances increase as components heat up. On Duramax, Cummins, and Powerstroke applications, a proper return-flow or contribution test is often the quickest way to identify whether the injectors are bleeding off too much fuel.
Do not assume all injector problems show up as smoke or a noticeable miss. A truck can run fairly smoothly and still have enough internal leakage to trigger a low-pressure code under load.
A Failing High-Pressure Pump
The high-pressure pump is responsible for creating the pressure the injectors need. Wear inside the pump, a failed metering section, poor inlet supply, or fuel contamination can reduce its output. On some systems, a worn pump may build adequate pressure at idle but fail to keep up when the engine is pulling hard.
This is where diagnosis matters most. A high-pressure pump is not a casual parts swap, and a pump failure that produces metal can turn into a full fuel-system repair. Metal contamination can travel through the rail, lines, injectors, and return circuit. If metal is found, cleaning only one component is not a dependable repair. The system must be inspected and repaired according to the engine manufacturer's contamination procedure.
Low lubricity fuel, water intrusion, and lack of filter maintenance all shorten the life of expensive fuel-system components. Clean fuel is cheaper than injectors and a pump.
Faulty Fuel Metering or Pressure Control Components
Most common-rail systems use an electronically controlled valve to meter fuel into the high-pressure pump or regulate pressure within the system. Depending on the platform, this may be called a fuel control actuator, fuel control valve, suction control valve, inlet metering valve, or similar name.
If that valve sticks, has internal wear, or loses its electrical command, rail pressure may be slow to build or may drop suddenly. A rail pressure relief valve that is leaking internally can also prevent the system from reaching commanded pressure. These failures can look very similar on a scan tool: desired pressure rises, actual pressure lags behind, and the ECM limits power or sets a code.
Control valves should be tested in the context of the whole system. A valve may be doing exactly what the ECM commands because the ECM is responding to a bad sensor reading or a supply issue.
Bad Rail Pressure Sensor, Wiring, or Connector Problems
The ECM can only react to the information it receives. A failing rail pressure sensor, damaged connector, rubbed-through wiring, poor ground, or corrosion in a harness can report pressure that is lower or higher than reality.
Electrical faults are commonly intermittent. The truck may run normally until vibration, heat, moisture, or engine movement affects the circuit. Watch for a signal that jumps around unrealistically, does not match engine conditions, or changes when the harness is moved. Inspect connector pin fit and wiring near the sensor, fuel control actuator, and engine harness routing before replacing major fuel components.
A sensor issue is not always harmless. If the ECM believes pressure is low, it may command more fuel or limit power in an attempt to protect the system. Accurate data matters.
Diagnosing Low Fuel Rail Pressure Without Guesswork
Start with the complaint and the conditions that trigger it. Does the truck have a hard start only when hot? Does it lose power only while towing? Did the issue begin after a fuel filter service, a tank repair, or a performance upgrade? Those details narrow the path quickly.
Use a capable scan tool to compare commanded rail pressure with actual rail pressure during cranking, idle, acceleration, and the condition where the problem occurs. A truck that cannot build required pressure during cranking points in a different direction than one that idles normally but falls behind under load.
Then work from the low-pressure side toward the high-pressure side. Verify fuel quality, water contamination, filter condition, supply pressure, supply volume, and air leaks. Check for stored and pending codes, not just the code that turned on the light. Inspect wiring and connectors before performing component tests.
If supply checks pass, test injector return flow and evaluate the metering valve, relief valve, and pump output using the procedure for that specific engine. Factory service information and platform-specific test equipment matter here. A test method that works on one generation of Cummins may not apply to a later Duramax or Powerstroke fuel system.
Never loosen a high-pressure fuel line with the engine running or attempt to check rail pressure by cracking a line. Common-rail fuel pressure can penetrate skin and cause a life-threatening injection injury. Use the correct scan data, gauges, fittings, and safety procedures.
Repair Choices That Protect Reliability
A fuel filter, air leak, or worn lift pump may be a straightforward repair. Injector, pump, or contamination-related failures require a broader view. Replacing one damaged injector while ignoring contaminated fuel or a failing supply system can lead to another failure quickly.
For trucks that tow, work commercially, or run added power, match fuel-system upgrades to the actual demand. More pump or injector capacity can support a performance build, but it must be paired with proper tuning, filtration, and fuel supply. Bigger parts do not correct a restriction, failing sensor, or poor fuel quality.
Gillett Diesel Service approaches these repairs from the service bay first: identify the failed section of the system, verify the root cause, and use parts that fit the engine generation and intended use. That is how a repair holds up after the truck leaves the shop.
When rail pressure starts falling behind, avoid the temptation to throw a pump at it. A clean fuel supply, accurate scan data, and a disciplined test order will usually show whether the problem is a simple restriction or a serious high-pressure failure - and give your truck the best chance of returning to dependable work.
