A truck can feel like it has a major turbo, fueling, or transmission problem when the real issue is much simpler: it is losing boost between the turbocharger, intercooler, and intake. Split boots, collapsed factory piping, loose clamps, and oil-soaked connections can turn a dependable diesel into a smoky, underpowered headache. S&B intercooler pipes and boots are designed to replace those weak links with application-specific components that hold up better under heat, pressure, towing loads, and performance use.
For many diesel owners, this is not a cosmetic upgrade. It is preventive maintenance with performance benefits. The right kit can restore consistent boost delivery, reduce the chance of a roadside boot failure, and remove a common source of charge-air leaks on hard-working Cummins, Duramax, and Powerstroke trucks.
What S&B Intercooler Pipes and Boots Do
The charge-air system carries compressed air from the turbocharger through the intercooler and into the engine. That air is hot when it leaves the turbo. The intercooler lowers its temperature, helping create denser intake air for cleaner, more efficient combustion. Pipes, boots, and clamps have to keep that pressurized air contained through the entire route.
Factory systems are built for production cost, stock power, packaging constraints, and normal expected use. That does not mean they are automatically poor parts. On an unmodified truck used lightly, factory piping may last a long time. But age, heat cycles, oil vapor, vibration, high boost pressure, and heavy towing eventually expose the limitations of rubber boots and plastic or thin-wall factory tubes.

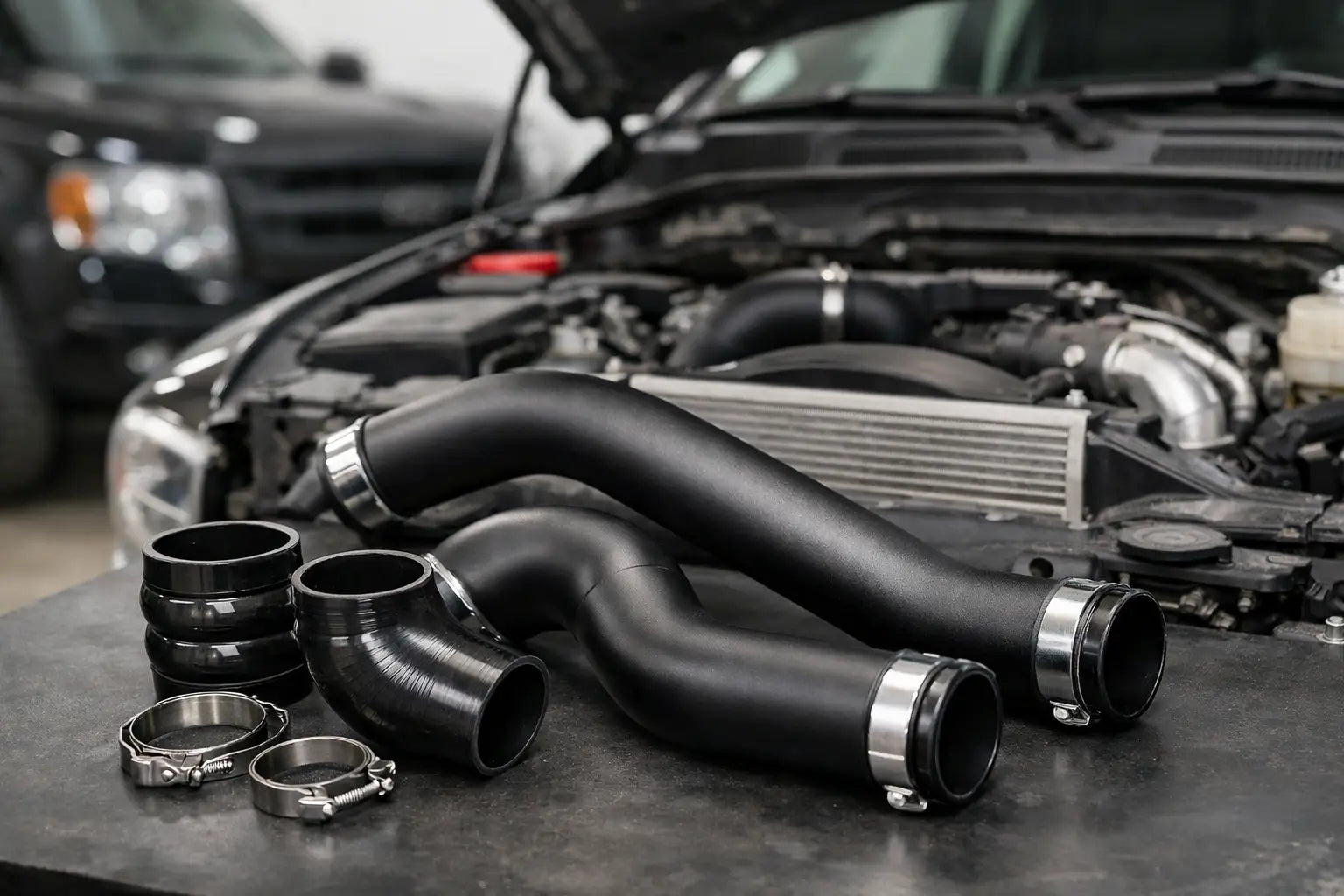

S&B kits generally replace factory charge-air plumbing with stronger mandrel-bent aluminum piping, reinforced silicone couplers or boots, and more secure clamp systems. The goal is not simply bigger tubing. It is a properly sealed, durable path for boosted air that fits the truck without improvising universal parts.
Why Factory Boots and Pipes Fail
A boost leak does not always announce itself with a dramatic pop under the hood. Sometimes it begins as a faint whistle, slower spool-up, increased smoke under load, or a truck that feels flat when pulling a trailer. The engine may also set underboost-related diagnostic codes, especially when actual boost cannot keep up with commanded boost.
The most common failure point is the boot. Rubber boots live in a difficult environment: high temperature, pressure pulses, engine movement, and exposure to oil residue from the crankcase ventilation system. Over time, a boot can soften, swell, crack, or lose its grip. Once a connection starts moving, the clamp and pipe bead area can become part of the problem too.
Factory plastic pipes can crack at joints or flex under pressure. Metal pipes can still leak if their ends do not have an effective bead roll, if the boot is contaminated with oil, or if the clamp is not tightened correctly. Replacing only the visibly failed boot can get a truck back on the road, but it may leave other aging components in place.
That is why a complete intercooler pipe and boot kit often makes sense for a truck with repeat boost leaks, a tuned calibration, a larger turbocharger, or a demanding towing schedule. It addresses the whole charge-air route instead of waiting for the next weakest component to fail.
When an S&B Intercooler Pipe Kit Makes Sense
An S&B charge-air upgrade is most valuable when reliability matters as much as horsepower. A contractor towing equipment, a fleet operator trying to avoid downtime, and a performance owner running increased boost all have good reasons to inspect the factory system closely.
It is also a practical upgrade during related repairs. If the turbocharger, intercooler, intake components, or engine are already apart, replacing tired boots and original piping can save labor later. On older diesel pickups, this is often the right time to fix oil-contaminated connections and inspect the intercooler for rubbed-through areas, cracked end tanks, or damaged mounting points.
A stock daily driver with low miles and no signs of leakage may not need an upgraded system immediately. There is no value in replacing good parts just for the sake of modifying the truck. But if the truck has history, miles, modifications, or regular heavy use, the preventive value becomes easier to justify.
Stock Truck Versus Tuned Truck
A stock truck can benefit from better boots and clamps because the original components still age. However, the need becomes more urgent when boost levels rise beyond factory conditions.
Tuning, larger injectors, turbo upgrades, and aggressive towing can all increase cylinder pressure and demand more from the charge-air system. More boost does not automatically mean a truck needs the largest pipe available. Correct fitment, secure couplers, and durable construction matter more than chasing pipe diameter. An oversized or poorly matched system can create clearance issues, difficult installation, or connections that are harder to seal.
Choosing the Right S&B Intercooler Pipes and Boots
Fitment must come before anything else. Diesel truck charge-air systems vary by engine family, model year, cab configuration, emissions equipment, turbo arrangement, and intake setup. A kit built for one 6.7L Cummins application may not fit another truck with a different turbo outlet, intercooler connection, or factory air box arrangement. The same is true across Duramax and Powerstroke generations.
Before ordering, verify the truck's year, engine, and specific model configuration. Also consider whether it has an aftermarket turbo, replacement intercooler, cold-air intake, or other parts that change the factory routing. A quality application-specific kit is built to work with known mounting points and clearances, but mixed aftermarket combinations sometimes require additional planning.
Look closely at what the kit includes. A complete setup should provide the pipes, boots or couplers, clamps, and any required hardware. Some systems may retain certain factory components, while others replace a larger section of the charge-air tract. Knowing where the kit starts and ends prevents surprises when the truck is apart.
Material matters, but installation details matter just as much. Aluminum piping offers strength and corrosion resistance, while quality silicone boots handle heat and movement better than typical rubber pieces. Good clamps distribute clamping force evenly and help keep a boot from walking off under load. None of those advantages will overcome dirty mating surfaces or a clamp installed crookedly.
Installation Details That Prevent Repeat Boost Leaks
The difference between a dependable installation and a repeat failure is often preparation. Before installing new pipes and boots, clean every mating surface thoroughly. Remove old oil film, dirt, and residue from turbo outlets, intercooler connections, and intake horns. A greasy surface may let a boot slide even when the clamp feels tight.
Inspect the connection beads and flanges before reassembly. A damaged bead roll, warped pipe end, or cracked intercooler outlet can keep a new boot from sealing. Also check for engine movement problems. Broken motor mounts can place excess strain on charge-air piping and contribute to repeated coupler failures.
Position the pipes naturally before tightening clamps. Do not force a pipe into alignment by pulling it hard with a clamp. The boots should sit squarely on the connection, with proper engagement over the bead. Tighten clamps evenly to the manufacturer's specification, then recheck their position after the first heat cycle and a few drive cycles.
After installation, perform a visual inspection while the engine is running and listen for escaping air during a loaded road test. If the truck has a boost gauge or scan tool data available, compare actual behavior to what was normal before the failure. A pressure test of the charge-air system is the most direct way to locate a suspected leak and is worthwhile when symptoms continue.
Do Intercooler Pipes Add Horsepower?
On a healthy, stock truck with no boost leaks, intercooler pipes alone usually do not create a dramatic horsepower gain. That is the honest answer. Their biggest benefit is maintaining the air the turbocharger is already producing.
If the factory system is leaking, collapsing, or repeatedly blowing boots, restoring charge-air integrity can make the truck feel substantially stronger. That improvement is not magic horsepower. It is recovered boost, better turbo response, and more consistent airflow. On modified trucks, stronger plumbing also supports the power combination by reducing a common failure point.
For working trucks, predictability is often the real win. The truck that holds boost consistently while towing is easier to drive, runs cleaner under load, and is less likely to leave the owner diagnosing a sudden loss of power on the shoulder.
A Practical Upgrade for Trucks That Work
S&B intercooler pipes and boots are a sensible investment when the factory charge-air system has become a reliability concern or the truck is being asked to do more than it did when it left the factory. They are especially worthwhile for high-mileage diesels, tuned pickups, frequent tow rigs, and trucks already apart for turbo or intercooler service.
The key is treating the kit as part of a complete diagnosis, not a cure-all. Check for boost leaks, inspect related components, match the kit to the exact truck, and install it carefully. At Gillett Diesel Service, that shop-first approach matters because parts that fit correctly and hold up under real work are the parts worth installing.
