A coolant drip at the front of a Cummins engine is not a repair to put off until the next oil change. When you need to replace a Cummins water pump, the goal is bigger than stopping a leak. You are protecting the engine from overheating, avoiding a roadside breakdown, and making sure the cooling system can handle towing, work use, and summer heat.
Water pump jobs vary by engine generation and truck configuration. A first-generation 5.9L does not come apart like a late-model 6.7L, and packaging can change again with chassis-cab, medium-duty, or swapped applications. The basic principles remain the same: confirm the failure, identify the engine correctly, use quality parts, and do not rush the cleanup and refill process.
When to Replace a Cummins Water Pump
The water pump circulates coolant through the block, cylinder head, radiator, heater core, and other cooling-system components. If it cannot move coolant at the required volume, temperatures can climb quickly under load. On a diesel that pulls trailers or runs long hours, a marginal pump can become a serious problem fast.
External leakage is the most common sign. Look for dried coolant residue or wetness around the pump’s weep hole, gasket surface, and pulley area. Coolant may leave a white, pink, orange, or green trail depending on what is in the system. A small leak can be easy to miss until it starts coating the front cover or dripping from the lower engine area.
Bearing failure is another clear warning. A growl, chirp, or grinding sound from the belt drive deserves attention, particularly if the noise changes with engine speed. With the engine off and cool, check the pump pulley for excessive wobble or play. Do not confuse a failing water pump with an idler pulley, belt tensioner, alternator, or fan clutch. A careful inspection before ordering parts saves time and prevents replacing the wrong component.
Overheating, repeated low-coolant warnings, weak heater output, or coolant pushed from the overflow bottle can also point toward circulation trouble. Those symptoms are not exclusive to the pump. A restricted radiator, stuck thermostat, head-gasket issue, fan-clutch problem, air pocket, or cracked hose can produce similar complaints. Diagnose the full system instead of treating the pump as an automatic answer.
Confirm Your Cummins Engine Before Ordering Parts
Cummins water pumps are not one-size-fits-all. The correct pump depends on the engine family, model year, truck application, and sometimes the exact production date. A 1989-2002 5.9L 12-valve or 24-valve application, a 2003-2007 5.9L common rail, and a 2007.5-up 6.7L each require application-specific fitment verification.
Start with the truck year, engine displacement, and VIN. If there is any question about a previous engine swap or front accessory conversion, compare the existing pump and mounting arrangement before disassembly. This is especially relevant on older trucks that have had years of repairs, upgrades, and mixed parts installed.
Do not buy strictly by appearance. The wrong pulley offset, housing shape, gasket design, or hose connection can turn a straightforward job into a truck-down situation. For work trucks and fleet units, that lost time costs more than taking a few extra minutes to verify the part.
Parts and Supplies Worth Replacing at the Same Time
A water pump replacement is a good opportunity to inspect the components that are already exposed. Whether you replace them depends on condition, mileage, and how hard the truck works. There is no need to throw parts at a healthy system, but reinstalling a cracked belt or weak tensioner next to a new pump is false economy.
Have the correct water pump, gasket or O-ring, manufacturer-approved coolant, and clean distilled water if the coolant concentrate requires mixing. You will also need a drain pan, common hand tools, a scraper or non-marring cleaning tool, shop towels, and the torque specifications for your exact engine. If access requires removing the serpentine belt, inspect it closely for glazing, cracking, frayed ribs, coolant contamination, or missing material.
Check radiator and heater hoses for soft spots, swelling, abrasions, and crust around the clamps. Look at the belt tensioner and idler pulleys for noise or roughness. On high-mileage trucks, these components often fail in the same general service window. Replacing proven worn parts while the system is open makes sense. Replacing every component regardless of condition does not.

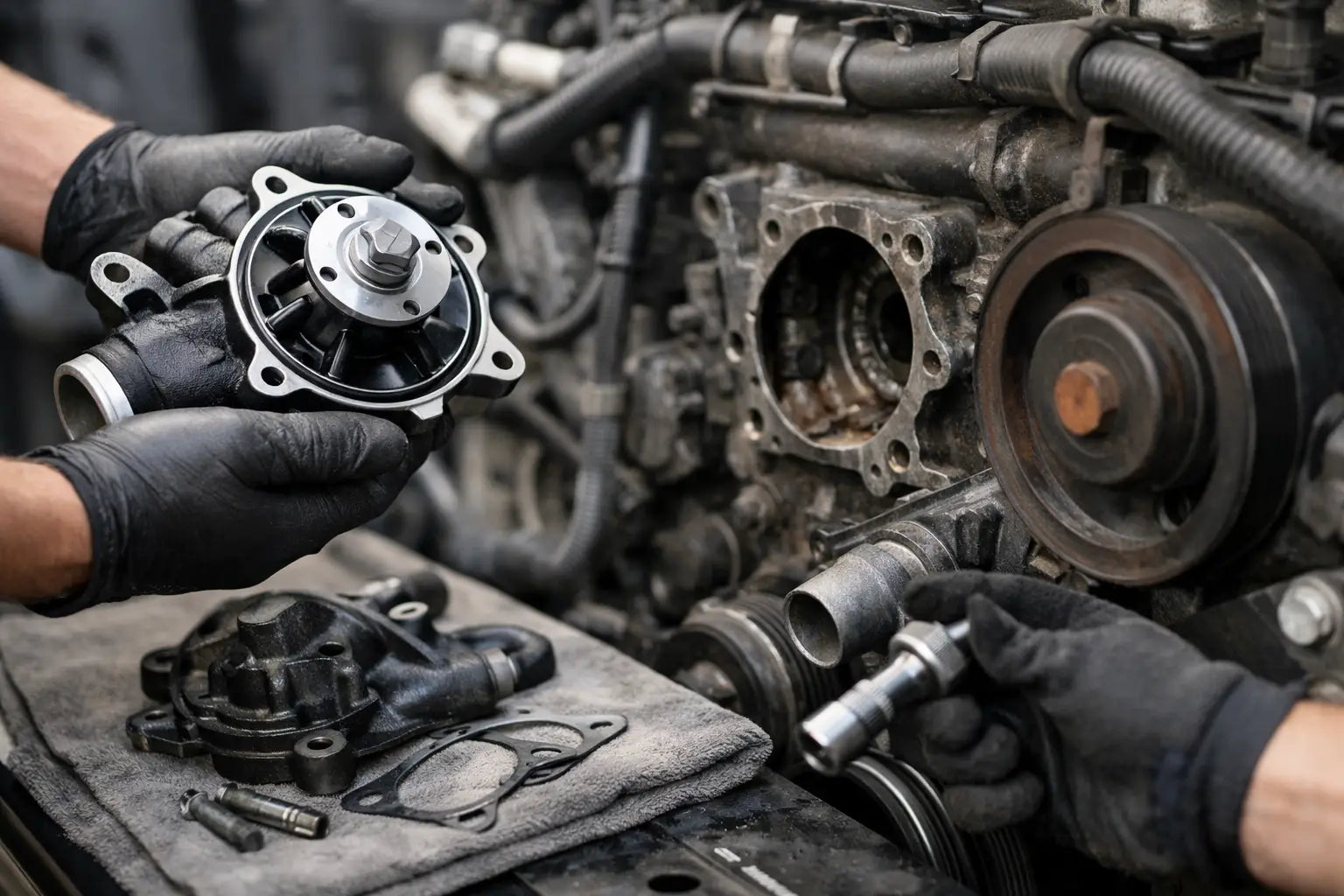

How to Replace a Cummins Water Pump Correctly
Start with a completely cool engine. Cooling systems are pressurized, and removing a cap on a hot truck can cause severe burns. Park on level ground, secure the vehicle, and drain the coolant into a clean drain pan. If the coolant is relatively fresh and uncontaminated, it may be reusable, but only if it is collected cleanly and matches the correct specification for the truck.
Disconnect the batteries if your work area puts tools near electrical connections or the alternator. Remove the intake components, fan shroud, fan assembly, belt, or upper radiator hose as required for access. The exact order differs by Cummins generation, so work from the service information for your engine rather than forcing components out of the way.
Before removing the old pump, take a close look at the belt routing and hose positions. A quick photo can prevent mistakes during assembly. Remove the pump mounting bolts evenly, keeping track of any different bolt lengths. Once the pump is loose, be prepared for residual coolant to spill from the block and hose connections.
The gasket surface matters. Clean the mounting area thoroughly without gouging aluminum or cast surfaces. Old gasket material, corrosion, and debris can create a leak path even with a new pump. Avoid aggressive abrasive discs that can damage the surface or send debris into the cooling passages. A careful hand-cleaning approach takes longer, but it is the right way to do it.
Install the new gasket or O-ring exactly as the pump manufacturer specifies. Some applications call for a dry gasket, while others may require a small amount of approved sealant at specific locations. More sealant is not better. Excess material can squeeze into the cooling system and cause problems later.
Set the new pump in place, start all bolts by hand, and torque them evenly to the correct specification. Reinstall hoses, belt-drive components, fan hardware, and intake parts. Confirm that the belt is routed correctly and fully seated in every pulley groove. One rib off on a pulley can destroy a new belt and create an immediate charging or cooling problem.
Refill and Bleed the Cooling System
The job is not finished when the bolts are tight. Incorrect coolant type, poor mixing, or trapped air can create overheating complaints after an otherwise good water pump replacement. Use coolant that meets the required specification for your Cummins application. Mixing incompatible coolant chemistries can shorten component life and reduce corrosion protection.
Fill the system slowly. Follow the truck-specific bleed procedure, then run the engine while monitoring coolant level and temperature. Set the heater to hot so coolant circulates through the heater core. Watch for leaks around the pump, hose connections, and drain points as the engine reaches operating temperature.
After the thermostat opens and the system has completed a heat cycle, shut the truck down and let it cool fully. Recheck the coolant level and inspect again for seepage. A road test under normal load is worthwhile, followed by one more check for leaks and coolant level. On a truck used for towing, do not assume the repair is proven until it holds normal temperature under real work.
Common Mistakes That Create Repeat Repairs
The most expensive water pump mistakes usually happen after the new part is installed. Reusing contaminated coolant, skipping gasket-surface prep, over-tightening fasteners, and failing to bleed air from the system can all lead to a comeback. So can ignoring the original cause of the failure, such as a worn belt tensioner, damaged fan, or severely neglected coolant.
Another common mistake is treating all coolant as interchangeable. Modern diesel cooling systems rely on the correct additive package to prevent corrosion and cavitation-related damage. If the truck’s maintenance history is unknown, a complete cooling-system service may be smarter than topping off with whatever is on the shelf.
For owners who want a repair they can trust, Gillett Diesel Service approaches parts selection the same way we approach shop work: identify the exact platform, inspect the surrounding system, and use components that are built for the job. That is how you keep a water pump repair from becoming an overheating problem two weeks later.
A good Cummins water pump replacement should leave you with more than a dry driveway. It should give you confidence that the truck can idle in traffic, pull a load, and put in a full day of work without watching the temperature gauge climb.
