A plugged oil cooler can turn a dependable Powerstroke into a truck that runs hot, loses coolant, and keeps you guessing at every temperature change. This Powerstroke oil cooler replacement guide is built around the checks that matter before parts come off, plus the repair practices that keep the same failure from coming back.
Oil cooler service is not a one-size-fits-all job. The 6.0L, 6.4L, and 6.7L Powerstroke engines have different layouts, known failure patterns, and access requirements. The 6.0L is the platform most commonly associated with oil cooler restriction, but any truck with contaminated coolant, neglected maintenance, or overheating history deserves a complete diagnosis before an oil cooler is blamed.
Know When the Oil Cooler Is Actually the Problem
On a 6.0L Powerstroke, the oil cooler uses engine coolant to control oil temperature. Its narrow coolant passages can become restricted by sediment, silicate fallout, rust, casting sand, or residue left behind after other cooling-system failures. As coolant flow falls, engine oil temperature rises while coolant temperature may still look reasonable on the dash gauge.
The best first check is a scan tool that can read engine oil temperature, or EOT, and engine coolant temperature, or ECT. Bring the truck fully to operating temperature, then monitor both readings under a steady highway load. A healthy 6.0L generally holds a close spread between the two. A sustained difference greater than roughly 15 degrees F is a strong warning that coolant flow through the oil cooler is restricted.
That number is a diagnostic starting point, not a license to order parts without checking the rest of the system. Ambient temperature, trailer load, fan operation, thermostat performance, and sensor accuracy all affect the readings. More importantly, a restricted cooler on a 6.0L can reduce coolant flow to the EGR cooler. If the EGR cooler has already been overheated, replacing only the oil cooler may leave you with another problem waiting to show itself.
Other signs can include repeated coolant loss, a degas bottle that pushes coolant out, an EGR-related code, oil temperature that climbs hard under load, or evidence of coolant contamination. Do not assume that a bubbling degas bottle automatically means a head-gasket failure. Combustion gases, a failed EGR cooler, an overfilled cooling system, and cooling-system restrictions need to be separated with proper testing.
Diagnose the Cooling System Before Ordering Parts
A solid repair starts with pressure and contamination checks. Inspect the degas bottle, cap, hoses, radiator, water pump area, and heater hoses for leaks or dried coolant residue. Pressure-test the cooling system cold and, when the situation calls for it, perform a combustion-gas test. Look at the coolant itself. Clean-looking coolant is encouraging, but it does not prove the small passages in an oil cooler are open.
On a 6.0L, pay attention to the coolant filter question. A filter can help protect a new cooler after the system has been properly cleaned, but it is not a substitute for cleaning. Installing a new cooler in a system full of debris is a fast way to repeat a labor-intensive repair.
If the truck has a known EGR cooler issue, damaged injectors, a failed oil cooler, or heavy contamination, take a broader view. Check the turbocharger and intake tract for coolant evidence where applicable, inspect the thermostat, and verify that the fan clutch or electric fan system is doing its job. A scan tool can also reveal sensor readings that do not make sense before you spend time chasing a mechanical failure.
For 6.4L and 6.7L trucks, use platform-specific service information and data. Their cooling and oil system designs differ from the 6.0L, and the familiar 6.0L EOT-to-ECT rule should not be carried over blindly. Correct diagnosis always starts with the engine generation in front of you.
Parts That Belong in an Oil Cooler Repair
An oil cooler replacement is deep enough in the engine that cheap parts and reused seals can create expensive comebacks. Use a quality cooler matched to the exact engine, model year, and calibration where required. Confirm fitment with the VIN when there is any doubt, especially on trucks with prior engine work or mixed-year components.
At minimum, plan on new cooler seals and O-rings, fresh approved coolant, engine oil, and an oil filter. Depending on the truck's condition and the parts removed for access, it may also make sense to replace intake manifold gaskets, turbo pedestal seals, EGR gaskets, thermostat seals, damaged hoses, and brittle electrical connector retainers.
A practical parts and supply check should include:
- A vehicle-specific oil cooler kit with all required seals
- OEM-quality coolant and distilled water for the final fill
- Correct engine oil and a quality oil filter
- Intake, EGR, turbo, and exhaust gaskets required for reassembly
- Cleaning supplies, a torque wrench, scan tool, and cooling-system pressure tester
Powerstroke Oil Cooler Replacement Guide: The Job Sequence
Prepare the truck and document baseline data
Start cold. Record current trouble codes, EOT and ECT readings, coolant level, oil condition, and any existing leaks. Disconnect both batteries before working around the intake, fuel system, and electrical connectors. Drain the cooling system into clean containers and drain the engine oil if the procedure or contamination level calls for it.
Take photos as you work, particularly around vacuum lines, sensor connectors, wiring clips, and hose routing. On trucks that have spent years working, a broken connector or a misplaced hose can cost more diagnostic time than the cooler installation itself.
Remove components carefully for access
On a 6.0L, oil cooler access requires significant upper-engine disassembly. The intake system, turbocharger-related components, intake manifold, oil filter housing, and surrounding hardware may need to come off depending on the exact procedure and configuration. Follow the correct factory sequence for your engine rather than forcing components around wiring or hard lines.
Keep hardware organized by component. Cover exposed intake ports and oil passages immediately. Dirt falling into an open engine is not a minor detail, especially when high-pressure oil and fuel-system components are nearby. Inspect the removed parts as you go. Carbon buildup, warped mating surfaces, torn gaskets, and signs of coolant travel can tell you whether the repair needs to expand.

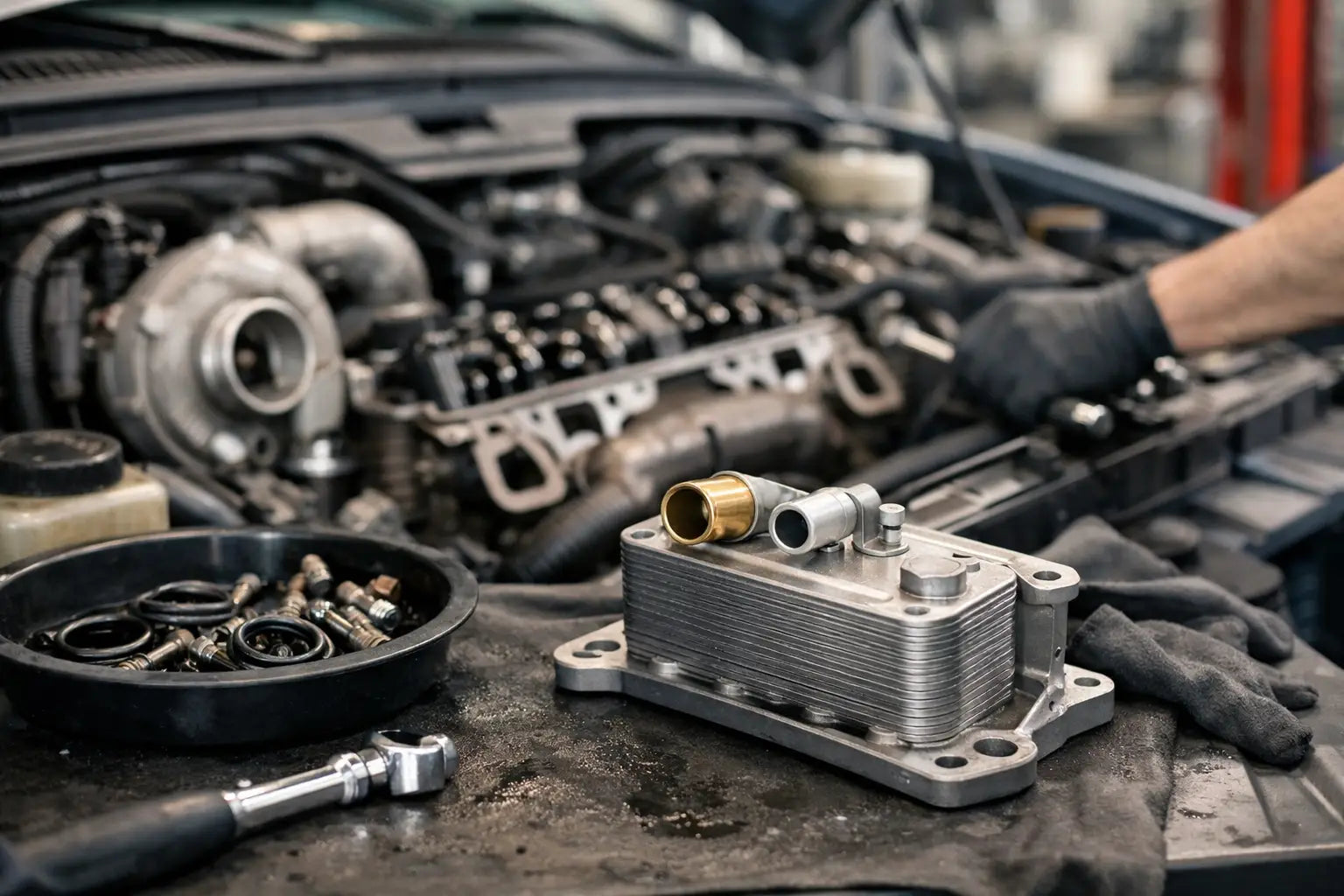

Replace the cooler and inspect the housing
Once the cooler assembly is accessible, clean the sealing surfaces without gouging aluminum. Do not use aggressive abrasives that can send debris into the engine. Inspect the housing for corrosion, damaged threads, distorted surfaces, and remnants of old seals.
Lubricate new O-rings as specified for the application and install them squarely. A rolled or pinched seal can create an internal leak that is difficult to find after the truck is back together. Torque fasteners in the proper sequence and specification. Guessing at torque on an oil cooler housing or intake manifold is not professional repair work.
Reassemble, flush, and refill correctly
Reinstall components in reverse order with new gaskets where required. Verify every electrical connector, ground strap, hose clamp, and bracket before the intake system is closed up. This is also the time to inspect the turbocharger, clean accessible soot buildup, and replace questionable hoses that would be difficult to reach later.
Flushing deserves patience. The proper method depends on what contaminated the system and how severe it is. Some trucks need repeated drain-and-fill cycles; others need a more thorough chemical cleaning followed by multiple distilled-water rinses before final coolant is added. Do not leave cleaning chemicals in the system longer than their instructions allow, and do not refill with random universal coolant simply because it is available.
Bleed air according to the service procedure, then bring the truck to temperature and check for leaks. A short idle in the shop is not the final test. Verify heater output, cooling-fan operation, and scan data during a controlled road test. Recheck coolant level after the engine cools completely.
Verify the Repair Under Real Load
After replacement, monitor EOT and ECT again on the same type of drive that exposed the original issue. The temperatures should track much closer than before. Watch for coolant loss, degas bottle pressure concerns, exhaust smoke, new trouble codes, or oil leaks around the work area.
For a truck that tows, schedule the verification drive with meaningful load when practical. Light cruising can hide a cooling problem that shows up only on a grade with a trailer behind it. Fleet trucks deserve the same attention because a missed cooling-system issue becomes downtime at the worst possible time.
A new oil cooler is valuable only when it is supported by clean coolant, sound diagnostics, and careful assembly. Take the extra time to prove why it failed, and your Powerstroke has a far better chance of returning to work without the same temperature problem following it down the road.
