A Powerstroke exhaust back pressure sensor is a small part with a large job. When its reading is wrong, the PCM can make bad decisions about cold-start strategy, turbo control, and exhaust flow. The result may be a truck that starts hard, feels lazy under load, surges, throws a sensor code, or simply does not run the way a working Powerstroke should.
This is one of those repairs where throwing a sensor at the truck can work, but it can also miss the real problem. On many applications, the sensor is only half the system. The pressure tube, connector, wiring, exhaust restrictions, and the engine generation all matter.
What the Exhaust Back Pressure Sensor Does

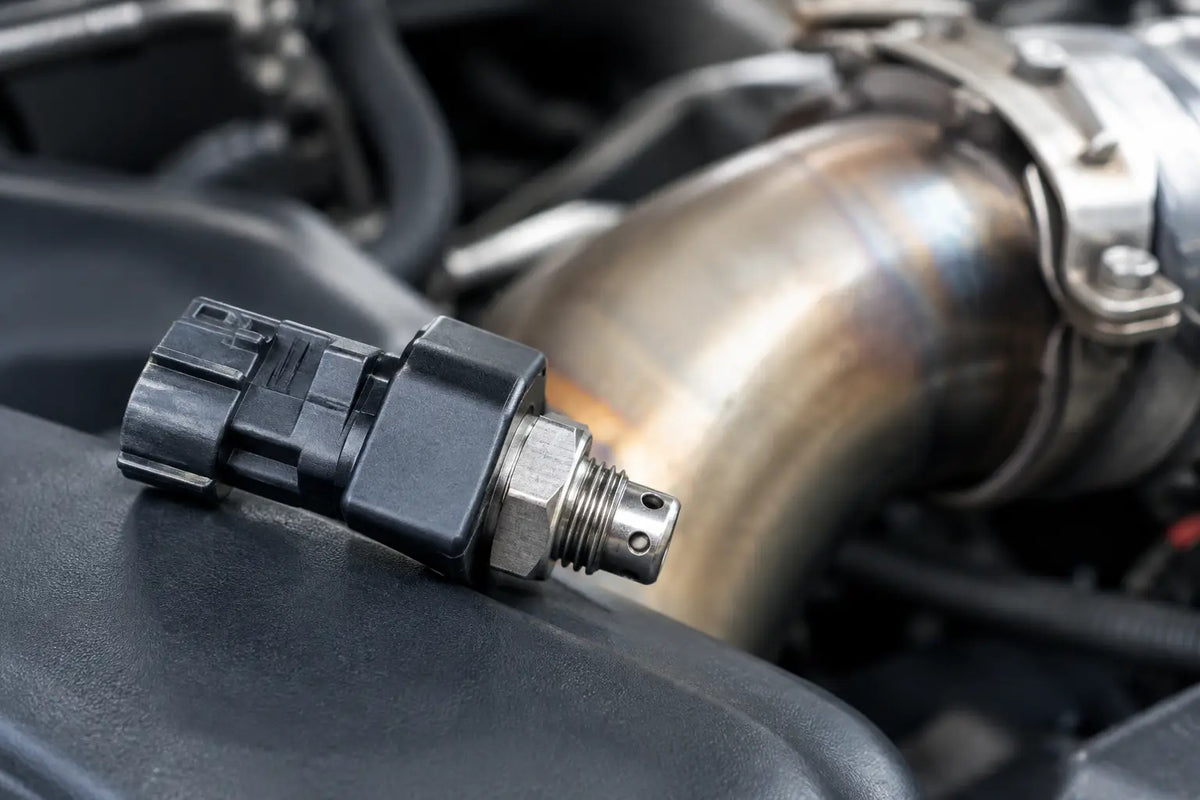

The exhaust back pressure, or EBP, sensor measures pressure in the exhaust stream. The PCM uses that information differently depending on the Powerstroke generation. On older trucks, especially the 7.3L Powerstroke, EBP feedback plays a significant role in cold operation and exhaust back pressure valve control. Later engines may use exhaust pressure readings as part of turbocharger, EGR, and emissions-system calculations.
The basic principle is straightforward: exhaust pressure should make sense compared with engine speed, load, boost, and atmospheric pressure. If the reported number is too high, too low, or does not change when conditions change, the PCM loses a useful piece of information.
That does not mean every drivability concern points to an EBP sensor. A plugged catalytic converter, restricted diesel particulate filter on later trucks, sticking variable geometry turbo vanes, boost leaks, exhaust leaks, or faulty intake sensors can create similar complaints. Good diagnosis separates a bad measurement from a genuine pressure problem.
Common Powerstroke Exhaust Back Pressure Sensor Symptoms
A failed sensor can create obvious problems, but many trucks give smaller warnings first. A check engine light is common, often with a circuit, range, or performance-related trouble code. The truck may have rough cold starts, extended cranking when temperatures drop, unstable idle, reduced power, or poor throttle response.
On a 7.3L, a failed or carbon-restricted EBP system can contribute to incorrect exhaust back pressure valve operation. Owners may notice the truck seems more sluggish than usual when cold or has an exhaust note that does not sound normal during warm-up. On newer platforms, inaccurate exhaust pressure information can interfere with turbo and emissions-related control strategies.
Watch the pattern, not just one symptom. If the issue happens only under a hard pull, look closely at actual exhaust restriction, turbo performance, and fuel delivery. If the scan data is clearly wrong with the engine off, the sensor circuit or sensor itself moves higher on the suspect list.
The Tube Can Be the Actual Failure
On engines that use a remote-mounted sensor and a small steel pressure tube, carbon buildup is a regular problem. The sensor may be electrically functional but unable to see true exhaust pressure because the tube or fitting is restricted. Moisture and soot can also damage the tube over time.
Replacing only the sensor while leaving a plugged tube in place can produce a short-lived repair or no repair at all. Inspect the entire path from the exhaust manifold fitting to the sensor port. If the tube is heavily coked, rusted through, or difficult to clean completely, replacement is generally the better call.
How to Diagnose the Sensor Before Buying Parts
Start with a visual inspection. Look for a melted connector, oil or water intrusion, chafed wiring, loose terminals, and damage around the sensor mounting area. Follow the pressure tube if equipped. A crack, blocked passage, or loose fitting can corrupt the reading just as effectively as a failed sensor.
Next, use a scan tool that can read live data. With the key on and engine off, the exhaust back pressure value should normally be close to barometric pressure. It will not always match to the decimal, but it should be believable. A reading that is extremely high, extremely low, fixed at one number, or far away from barometric pressure deserves attention before the engine is even started.
Once the truck is running, watch whether the value responds to changes in rpm and load. Exhaust pressure should not remain flat while operating conditions clearly change. Compare EBP data with boost, manifold absolute pressure, desired and actual turbo position where available, and other relevant readings for that engine.
Electrical testing may be needed if scan data points toward a circuit issue. Most pressure sensors use a 5-volt reference, signal circuit, and sensor ground. Check for proper reference voltage, a clean ground, and signal voltage that changes as pressure changes. Use the factory wiring information for the specific year and engine. Pin locations, expected values, and sensor strategies vary between generations.
A mechanical pressure gauge can settle the question when the diagnosis is unclear. If actual exhaust pressure is normal but scan data is not, the sensor, tube, or wiring is at fault. If mechanical pressure is truly excessive, replacing the sensor will not fix the restriction or turbo control problem causing it.
Powerstroke Generation Matters
There is no one-size-fits-all EBP repair procedure. The 7.3L Powerstroke is the application most owners associate with the traditional EBP sensor and tube. Its system deserves a close inspection for soot buildup and corrosion, particularly on trucks that have seen years of short trips, cold weather operation, or deferred maintenance.
The 6.0L, 6.4L, and 6.7L Powerstroke families use different sensor arrangements and control strategies. Some have multiple exhaust pressure or temperature inputs, and component names can be confusing when ordering parts. Do not identify a sensor by appearance alone. Confirm the engine year, calibration, location, connector, and part number before placing an order.
This matters even more on modified trucks. An aftermarket turbo, non-stock exhaust configuration, tuning, or emissions-related hardware changes can alter what the PCM sees and how the truck responds. The correct repair is still based on accurate readings and sound mechanical condition, not on trying to force a sensor to compensate for another issue.
Replacement Practices That Prevent Repeat Repairs
If testing confirms the sensor has failed, install a quality replacement rather than the cheapest available option. Low-grade sensors often have poor calibration or short service life, and inaccurate pressure feedback can send you back into diagnosis quickly.
Before installing the new part, clean the mounting area and inspect the connector terminals closely. Repair damaged wiring instead of stretching a failing connector onto a new sensor. If the truck uses an EBP tube, service or replace it at the same time when contamination is present. Make sure the manifold fitting is open, but avoid forcing debris deeper into the exhaust passage.
After the repair, clear the codes and verify live data again with the key on and the engine running. Then road-test the truck under the conditions that caused the complaint. A short idle in the driveway does not prove a towing or load-related issue is solved.
When a Sensor Is Not the Problem
A valid high exhaust pressure reading is not a sensor failure. It may point to a sticking turbocharger, a restricted exhaust system, a plugged DPF, a damaged exhaust brake system, or an engine airflow issue. Likewise, a low or implausible reading can come from a cracked tube, an exhaust leak before the pressure source, or an electrical fault.
That is why experienced diesel diagnosis starts with data and inspection. Parts replacement has its place, but guessing gets expensive when the truck is used for work, towing, or fleet duty. At Gillett Diesel Service, the same platform-specific approach used in the shop is what helps owners identify parts that fit the actual engine and repair.
A clean signal from the exhaust side keeps the PCM working with real information. Test the sensor, inspect the tube and wiring, and verify the repair under load. That extra time is cheaper than chasing the same check engine light twice.
