A diesel that cranks hard on a cold morning, hazes white for the first few seconds, or needs multiple key cycles is telling you to inspect the glow plug system. Knowing how to test glow plug resistance gives you a fast way to check the plugs themselves before replacing parts blindly. The key is taking the measurement correctly, because glow plugs operate at very low resistance and a poor meter connection can look exactly like a failed plug.
For working trucks, that matters. A weak glow plug may not stop a warm engine from starting, but it can create cold-start trouble, rough idle, excess smoke, and unnecessary starter and battery strain. On electronically controlled diesel platforms, one failed plug may also set a diagnostic trouble code, while several weak plugs can cause symptoms without immediately turning on a warning light.
What Glow Plug Resistance Tells You
A glow plug is an electric heating element. When the glow plug control module or relay supplies power, current flows through the element and creates the heat needed to help ignite cold diesel fuel in the cylinder. Resistance is the restriction to that electrical flow.
A good glow plug has low resistance. An open or burned-out glow plug has extremely high resistance or reads OL, meaning over limit, on a digital multimeter. A plug with an internal short may read abnormally low. The exact acceptable number depends on the engine, glow plug design, and temperature, so the factory service information for your specific Cummins, Duramax, Powerstroke, or heavy-duty application always wins over a generic number found online.
As a general shop rule, many conventional cold glow plugs read somewhere around 0.5 to 2 ohms. Some modern quick-heating plugs can read lower than that. What often tells the better story is consistency: on a cold engine, one plug that reads dramatically different from the others deserves attention even if it is not completely open.
Tools Needed to Test Glow Plug Resistance
You need a decent digital multimeter capable of reading low ohms, clean meter leads, and access to the glow plug connectors. A scan tool can also help identify cylinder-specific glow plug codes and command the system for additional testing, but it does not replace a direct resistance test.
Let the engine cool before working around the plugs. This is not only a burn-prevention step. Resistance changes with temperature, so comparing readings from a cold engine gives you more useful results. Disconnect both negative battery cables on trucks with dual batteries if you will be unplugging harnesses or working around the controller wiring.
Before testing, inspect the harness. Brittle insulation, oil contamination in the connector, loose terminals, and rubbed-through wiring can cause the same code or no-start complaint as a bad glow plug. The plug may be fine while the circuit feeding it is not.

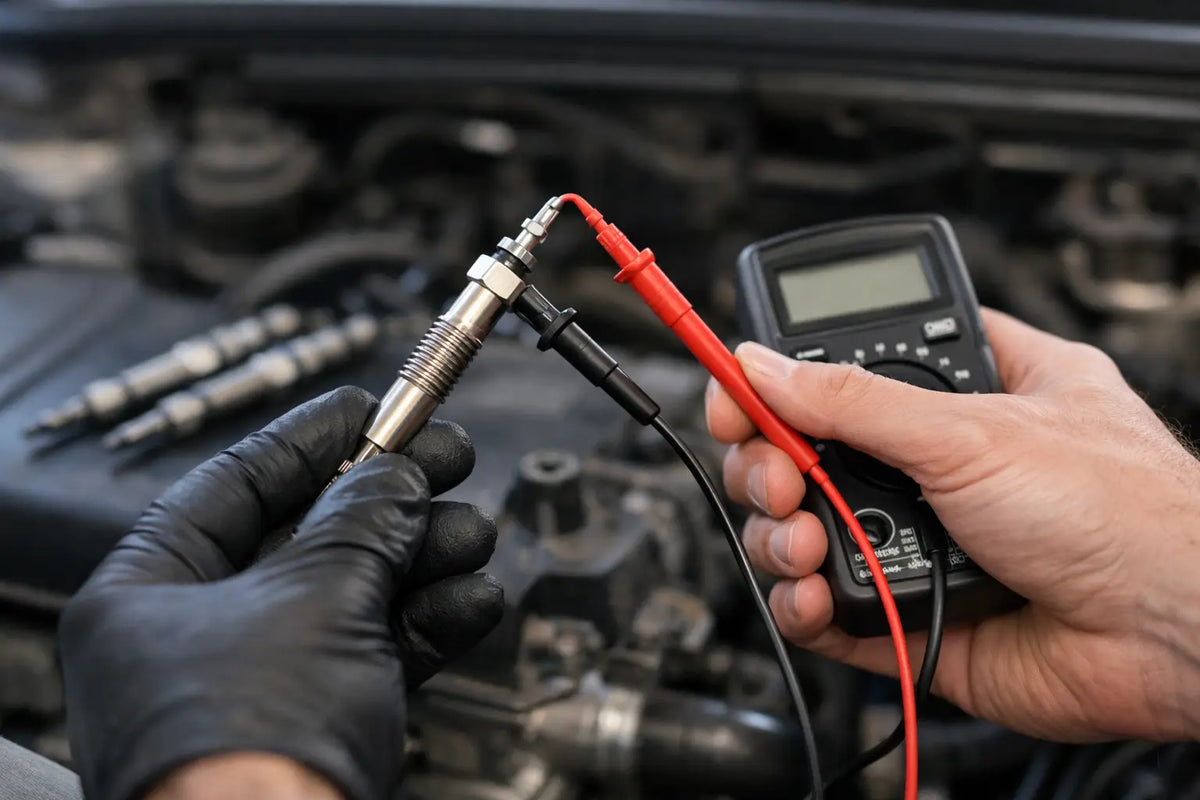

How to Test Glow Plug Resistance at the Plug
The most reliable resistance check is performed with the glow plug electrically isolated from the truck harness. That prevents the control module, bus bar, or parallel circuits from affecting your reading.
Zero Your Meter First
Set the multimeter to its lowest resistance range, or use auto-ranging ohms if that is what your meter provides. Touch the two meter leads together and look at the display. You may see 0.1, 0.2, or even several tenths of an ohm from the leads themselves.
If your meter has a REL, zero, or relative button, use it with the leads touching. This subtracts lead resistance from the measurement. If it does not, write down that number and account for it when comparing readings. On a circuit where a healthy glow plug may measure under 1 ohm, lead resistance is not a small detail.
Disconnect the Glow Plug Connector
Remove the individual connector or harness terminal from the glow plug. On some engines, access requires removing a valve cover, intake plumbing, or other components. Do not pull on the wire itself. Release the connector carefully so you do not create a second problem while diagnosing the first one.
With the harness disconnected, place one meter lead on the glow plug terminal. Put the other lead on a clean engine ground, preferably the cylinder head close to the plug. Avoid painted surfaces, dirty brackets, and corroded fasteners. A weak ground contact can produce a misleading high-resistance reading.
Record Every Cylinder
Test and record each glow plug one at a time. Do not rely on memory after checking six or eight cylinders. A simple cylinder-by-cylinder list makes the outlier obvious.
A plug that reads OL or stays at a very high number is open and has failed. A plug that reads much lower or higher than the rest should be compared against the manufacturer specification before condemnation. For example, if seven plugs read 0.7 to 0.9 ohm and one reads 3.5 ohms, that one plug is suspect even though it has not gone fully open.
Do not assume a lower reading always means better. Extremely low resistance can point to an internally damaged plug, meter error, or a bad test connection. Confirm the result by cleaning the terminal, checking your meter leads again, and retesting.
Testing From the Harness Side
Testing at the plug is best, but sometimes access is limited or you need to isolate a wiring issue. You can test resistance from the disconnected harness connector, then compare that result to the direct plug test.
If the glow plug tests good directly but reads open or unusually high through the harness, look for terminal spread, corrosion, broken wiring, or a connection issue between the harness and plug. If several plugs show abnormal readings from the harness but test normally at the plugs, inspect the common harness section, connector, fuse, relay, or glow plug control module.
This distinction saves money. Replacing a full set of glow plugs will not fix a damaged connector or a control module that is not delivering power.
Resistance Is Only One Part of the Diagnosis
A good resistance reading does not guarantee the entire glow plug system is doing its job. The plug still needs proper voltage and enough current during the preheat cycle. On late-model diesels, the engine control module may vary glow plug operation based on coolant temperature, intake air temperature, battery voltage, altitude, and after-start emissions strategy.
If all glow plugs test within specification but cold-start problems remain, move to system testing. Check battery condition first. Low cranking voltage slows the starter and reduces available power to the glow plug circuit. Then inspect fuses and high-current connections, scan for stored codes, and verify the control module is commanding the plugs as expected.
A voltage-drop test under load is often more useful than a static voltage check. Seeing battery voltage at a connector with the circuit unloaded does not prove the connection can carry the current demanded by multiple glow plugs. Corroded terminals can pass a meter test and still fail under real load.
Fuel delivery, compression, injector condition, air intrusion, and low engine speed can also create hard cold starts. Glow plugs are a common cause, but they are not the only cause. That is especially true on engines that start poorly both cold and warm.
Common Mistakes That Produce Bad Readings
The most common mistake is measuring resistance through the connected harness. That can send your meter reading through other components and give you a number that does not represent the individual plug. Disconnect the plug whenever possible.
Another mistake is using a cheap meter that cannot resolve low resistance accurately. If the display jumps around with the leads held together, or changes significantly when you move the lead wires, the meter may not be dependable for this job. A quality meter is worth having for diesel electrical diagnostics.
Do not test a hot engine and compare the results to cold specifications. Do not force probe tips into connector terminals, either. Enlarging a terminal can create an intermittent connection that was not there before. Use appropriate back probes or small test adapters when testing the harness side.
Finally, do not rush into removing a glow plug just because it tested bad. Glow plugs can seize in the cylinder head, particularly on high-mileage engines. Follow the engine manufacturer’s removal procedure, work with a warm-not-hot engine when recommended, and use patience. A broken glow plug can turn a basic electrical repair into a much larger job.
Replace Smart, Not Blind
Whether to replace one failed glow plug or the whole set depends on mileage, access, budget, and what the remaining plugs measure. If one plug has failed on a high-mileage engine and the rest are close to the edge of specification, replacing the complete set can prevent another cold-start repair next month. If the other plugs are newer and test consistently, replacing the failed unit may be reasonable.
Use the correct glow plug for the engine code and model year. Similar-looking plugs can have different voltage ratings, heat-up rates, thread lengths, and controller requirements. Installing the wrong part can damage the glow plug or create new control-system faults.
A clean resistance test is one of the best starting points in diesel cold-start diagnosis. Take readings carefully, compare every cylinder, and verify the wiring and control side before ordering parts. When the truck has to start before daylight and go to work, proven testing beats guessing every time.
