A diesel that cranks normally but turns into a white-smoke machine before it finally fires on a cold morning is telling you something. Before blaming injectors, batteries, or the fuel system, take the time to test diesel glow plugs and the circuit that feeds them. A failed glow plug is common, but so is a good set of plugs that never receives the power it needs.
Glow plug diagnosis does not need to be complicated. It does require the right test order, a decent meter, and enough caution to avoid damaging a modern glow plug control module. On late-model Cummins, Duramax, Powerstroke, and many heavy-duty applications, the control strategy can be more involved than the old relay-and-bus-bar systems. The basic principles still hold.
What Glow Plugs Actually Do
Glow plugs heat the air in the combustion chamber so cold fuel can ignite cleanly during startup. They are most critical when ambient temperatures drop, but a weak glow system can also cause rough starts in moderate weather, excessive white smoke, extended cranking, and a stumble for the first few seconds after startup.
Many newer diesel engines continue to cycle glow plugs after the engine starts. This after-glow function helps reduce smoke, smooth idle quality, and emissions while the engine is cold. That means a truck can start reasonably well yet still have a glow plug fault affecting cold operation or setting a diagnostic trouble code.
Do not assume every hard-start complaint is a glow plug problem. Slow cranking, weak batteries, low compression, air entering the fuel system, poor injector performance, incorrect fuel pressure, or a plugged fuel filter can create similar symptoms. Glow plugs are a logical place to start when the issue is clearly tied to cold weather, but they are one part of the diagnostic picture.
Signs It Is Time to Test Diesel Glow Plugs
A single failed plug may not stop a multi-cylinder diesel from starting. It can still create a rough, smoky start, especially if the failed plug is on a cylinder that is already marginal due to compression or injector condition. When several plugs fail, the symptoms become much more obvious.
Watch for hard starting only when cold, white or gray smoke during crank and immediately after startup, an uneven cold idle, glow plug-related fault codes, or a wait-to-start light that behaves differently than usual. On some trucks, the light only indicates that the controller is active. It does not prove that every glow plug is heating correctly.
If you are servicing a fleet truck or a work pickup that cannot afford a no-start at the jobsite, address these warnings before winter. A truck that barely starts in the driveway may not start at all after sitting outside overnight.
Tools and Safety Before You Start
A quality digital multimeter is the main tool. An amp clamp capable of reading DC current is even better for checking the complete system under load. You may also need a scan tool, the correct socket for plug removal, shop air to clean debris from the plug wells, and the factory wiring information for the exact engine.
Let the engine cool before working around the cylinder heads. Disconnect the negative battery cables when removing glow plug connectors or repairing wiring. Keep in mind that glow plugs and their feed circuits can pull substantial current. A test light is useful for basic checks, but a meter and an amp clamp provide better information without putting extra load on a sensitive controller.
Never jump battery power directly to a glow plug on a modern electronically controlled system just to see if it gets hot. Older-style bench tests have their place, but direct battery testing can damage a plug, wiring, or control module when performed carelessly. It also tells you less than an in-vehicle resistance and circuit test.

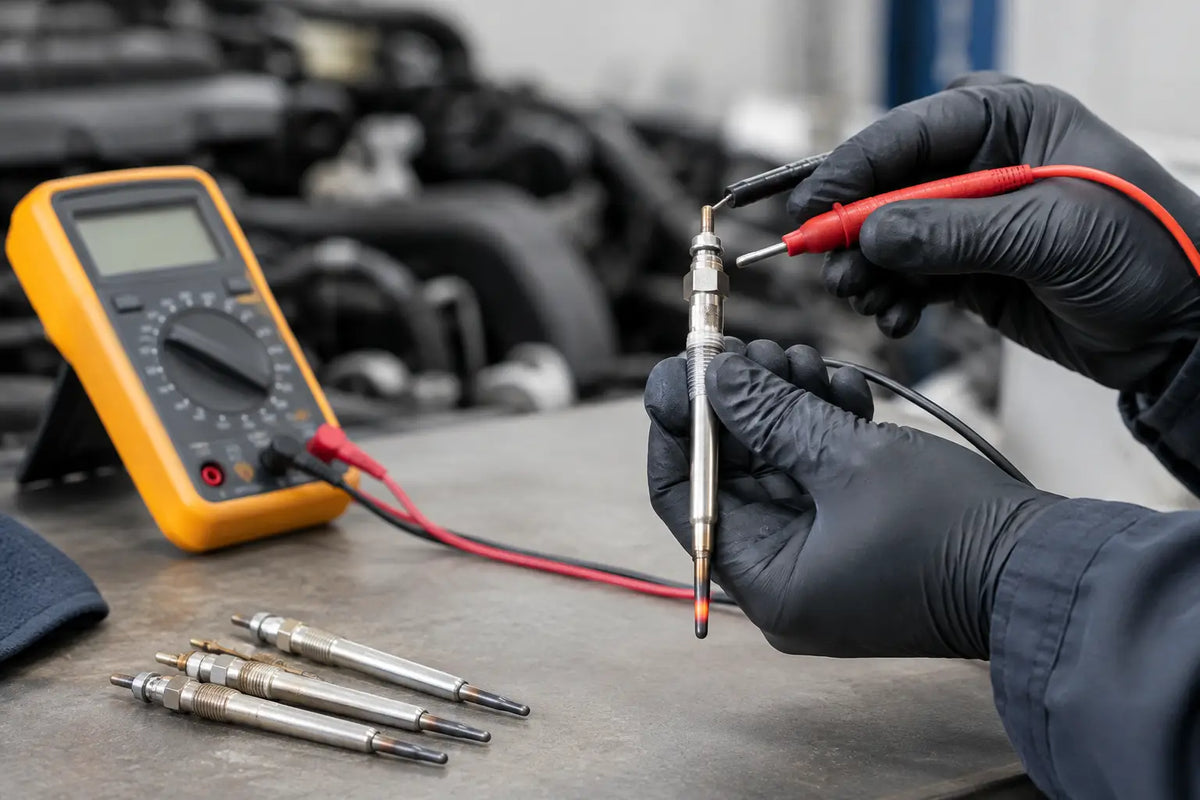

Test Glow Plugs With an Ohmmeter
The most common first test is resistance. Start by identifying the engine and locating the individual glow plug connectors or harness. Some engines use an external bus bar, while others use a valve cover harness or a dedicated connector at each plug.
Disconnect the glow plug harness from the plug you are checking. Set the meter to its lowest ohms scale. Touch the meter leads together first and note the lead resistance. On low-resistance components, the meter leads themselves can account for a meaningful part of the reading.
Place one lead on the glow plug terminal and the other on a clean engine ground. A healthy plug generally reads very low resistance, often below a few ohms. The exact acceptable specification depends on the engine, the plug design, and meter accuracy. Use the service information for that platform rather than relying on one universal number.
An OL reading or extremely high resistance usually means the element is open and the glow plug has failed. A reading that is substantially different from the rest of the plugs deserves attention, even if it is not completely open. Compare all cylinders whenever access allows. A matched set gives you a better baseline than testing one plug in isolation.
Be careful with readings near zero. A near-zero reading is not automatically a good result. It can indicate an internal short, a poor test setup, or a meter that is not accurate enough at very low resistance. Compare the result with the manufacturer specification and the other plugs, then move on to a current-draw or control-circuit test if the results are unclear.
Do Not Diagnose Through a Corroded Connector
Corrosion inside a glow plug connector can create a bad reading or prevent current from reaching a perfectly good plug. Inspect for green corrosion, overheated terminals, loose connector fit, rubbed-through wiring, and oil intrusion. On engines where the harness passes through a valve cover, inspect the pass-through connectors closely.
A bad harness can mimic several failed glow plugs. Replacing plugs without repairing the connection may leave the original problem exactly where it started.
Check for Power From the Glow Plug Controller
When the plugs test good, check whether the system is actually commanding them on. Reconnect the glow plug harness, then use a scan tool or voltage meter according to the factory test procedure. Many systems energize the plugs for only a short period, and the command time changes with coolant temperature, intake air temperature, battery voltage, and engine operating conditions.
On older systems, inspect the glow plug relay, its power supply, ground, and control signal. A relay can click and still have burned contacts that cannot carry the current needed by the plugs. Voltage-drop testing across the relay and main connections is more useful than simply listening for a click.
On newer trucks, the glow plug control module may individually monitor or control the plugs. A scan tool can reveal cylinder-specific codes, controller faults, temperature sensor inputs, and commanded activation. Do not condemn the module until you verify battery voltage, module grounds, fuses, connectors, and the plugs themselves.
An amp clamp is one of the best real-world checks. Clamp around the main glow plug feed and observe current draw during a cold activation event. A system with multiple working plugs should show a meaningful current draw that changes as the elements heat. Very low or zero current points toward an open feed, failed relay or module, poor power supply, or multiple open plugs. Current that is abnormally high may point to a shorted component or wiring fault.
Removing and Replacing Glow Plugs Without Creating More Work
Glow plugs live in a harsh environment. Heat cycles, carbon buildup, corrosion, and limited access can make removal difficult. Do not force one that feels seized. A broken glow plug can turn a routine repair into cylinder head removal or specialized extraction work.
Warm the engine only if the manufacturer procedure supports it, clean the area around each plug thoroughly, and use penetrating oil where appropriate. Work the plug carefully rather than applying steady excessive force. Follow the correct torque specification during installation. Over-torquing can damage threads or the plug itself, while under-torquing can affect heat transfer and sealing.
If one original plug has failed and the rest have high mileage, replacement strategy depends on access, budget, and the truck's use. Replacing the full set often makes sense on a work truck because the labor overlap is significant and matching plug performance matters in cold conditions. On engines with difficult access, a targeted repair may be reasonable if the remaining plugs test consistently and are known quality parts.
Use the correct glow plug for the exact engine code and model year. Similar-looking plugs can have different voltage ratings, heating characteristics, thread lengths, and control requirements. This is not a place to install a close-enough part.
When the Problem Is Bigger Than Glow Plugs
If the glow plugs, controller, wiring, and battery system check out, step back and look at the entire cold-start system. Verify cranking speed and battery voltage under load. Check for stored codes, fuel pressure issues, injector concerns, air leaks, and compression problems when the symptoms warrant it.
A diesel engine needs heat, fuel, air, compression, and sufficient cranking speed to start cleanly. Testing the glow system correctly rules out one major piece of that equation without throwing parts at the truck. For owners who depend on their pickup or fleet equipment every day, that is the kind of repair decision that protects both uptime and the bottom line.
