A Duramax that cranks longer than normal, falls flat under load, or sets a low-rail-pressure code is telling you the fuel system is not keeping up. Duramax fuel pressure regulator symptoms can look like injector trouble, a weak supply-side system, a plugged filter, or even a wiring fault. The regulator is a common suspect, but it should not be the first part replaced without testing.
On most common-rail Duramax engines, the fuel pressure regulator controls how much fuel enters the high-pressure pump. The ECM commands that valve to maintain the rail pressure needed for starting, idling, towing, and full-throttle operation. When it sticks, leaks internally, responds slowly, or loses electrical control, the engine may not build or hold the pressure it needs.

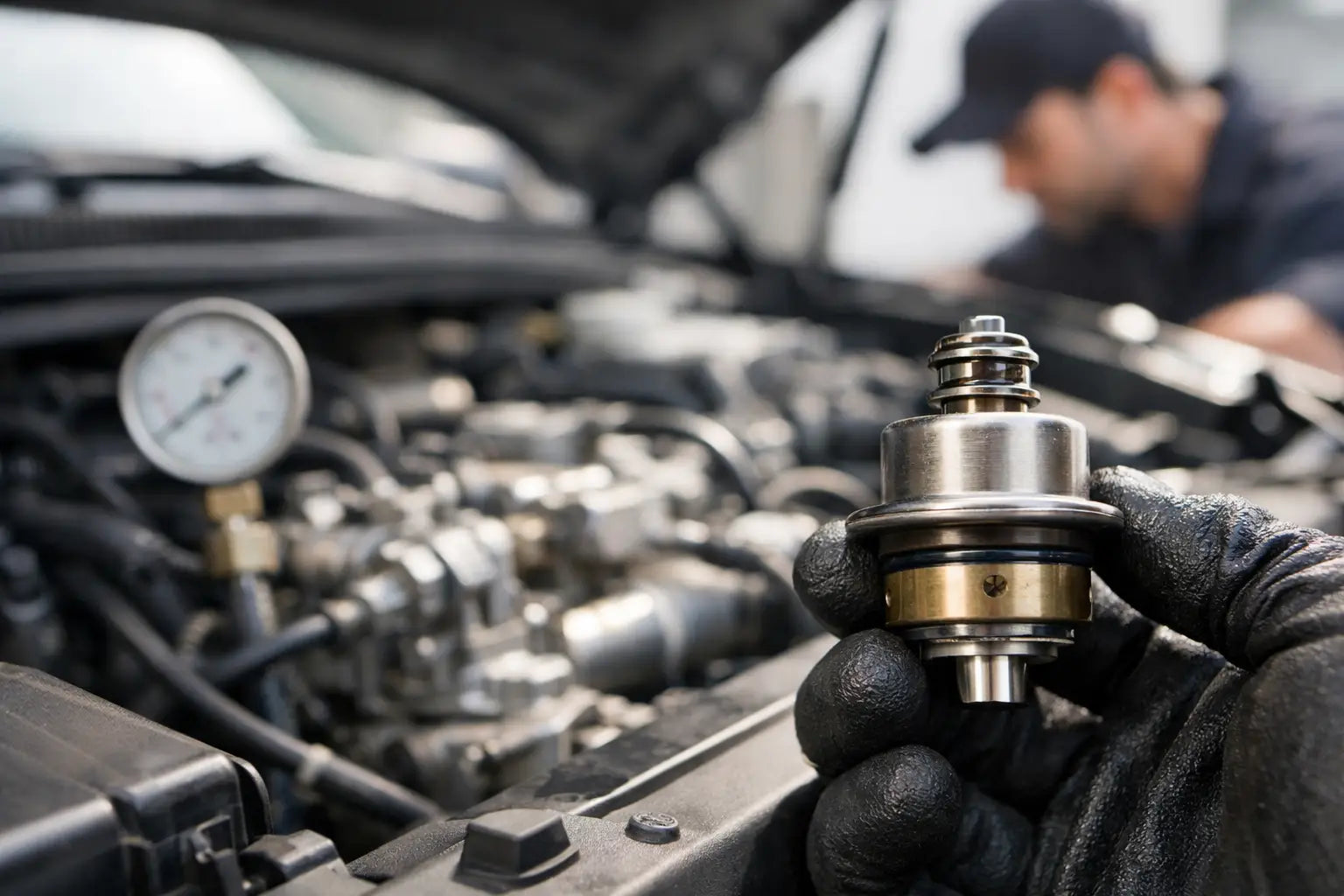

What the Fuel Pressure Regulator Does on a Duramax
The fuel pressure regulator, often called the FPR or fuel control actuator, is mounted on the high-pressure pump on many Duramax applications. It meters pump inlet fuel according to ECM command. More commanded fuel to the pump means higher potential rail pressure; less fuel reduces pressure.
That distinction matters because the regulator is not the same component as the fuel rail pressure sensor. The sensor reports actual rail pressure to the ECM. The regulator changes fuel flow in response to the ECM's command. A bad sensor can make the ECM react to bad information, while a failed regulator may be unable to follow a correct command. Both can produce similar drivability complaints.
Duramax generation matters, too. An LB7, LLY, LBZ, LMM, LML, and L5P do not share every fuel-system part or diagnostic procedure. Always identify the engine by year, VIN, and engine family before ordering components or relying on a test specification.
Common Duramax Fuel Pressure Regulator Symptoms
The most common complaint is an extended crank, especially after the truck sits overnight or when the engine is hot. The starter may turn the engine over normally, but rail pressure takes too long to reach the level required for injection. In a more severe failure, the engine will crank without starting.
A regulator that cannot supply enough fuel to the high-pressure pump may also cause hesitation, surging, reduced power, or a limp-mode event under hard acceleration, towing, or climbing a grade. Around town with little load, the truck may seem almost normal. Put a trailer behind it, and the problem becomes obvious because demanded rail pressure rises sharply.
Other symptoms can include rough idle, unstable idle speed, stalling when coming to a stop, reduced fuel economy, and a check-engine light. Codes vary by model year and calibration, but low fuel rail pressure or fuel pressure performance codes are common. A code alone does not condemn the regulator. It tells the technician where the system failed to meet commanded pressure.
Watch for the pattern. A truck that only loses power at wide-open throttle has a different diagnostic path than one that will not build rail pressure during cranking. The first may involve restricted fuel supply, excessive injector return, a weak high-pressure pump, or a regulator that cannot flow enough. The second can be caused by those same issues, but the pressure data during crank is the deciding factor.
What You Will See in Scan Data
A capable scan tool is more valuable than guessing. During a no-start or low-power complaint, compare desired rail pressure with actual rail pressure. Then look at regulator command, if the scan tool displays it, along with engine speed, battery voltage, fuel temperature, and any related fault codes.
If desired pressure climbs but actual pressure stays well behind it, the engine has a fuel-volume or high-pressure leak problem. A regulator may be at fault, but it is not the only possibility. If regulator command is near its limit and actual pressure remains low, the ECM is asking for more pressure but cannot get it.
If actual pressure is erratic at idle while commanded pressure is steady, inspect the regulator circuit, connector condition, rail pressure sensor data, and the fuel system for air intrusion or restriction. Do not overlook battery and cranking speed on a no-start. A slow crank can prevent proper pressure buildup and send the diagnosis in the wrong direction.
Problems That Mimic a Bad Regulator
Fuel pressure regulators fail, but many good regulators have been replaced because the rest of the system was not checked. On Duramax trucks, the supply side deserves attention first. A restricted fuel filter, collapsed hose, leaking quick-connect fitting, poor filter seal, or air leak can starve the high-pressure pump. Some failures show up only under load, when fuel demand is highest.
Excessive injector return flow is another major concern. If one or more injectors leak too much fuel internally, rail pressure may not reach its target, particularly during hot cranking. Depending on the Duramax generation, the diagnostic approach may include an injector balance evaluation, return-rate testing, or a manufacturer-specific fuel-system test.
High-pressure pump wear is also possible. Metal contamination in the filter, fuel system, or pump-related components is a serious finding, not a reason to install one new regulator and send the truck down the road. Contaminated systems require a complete, disciplined repair plan. Reusing contaminated components can destroy replacement parts quickly.
Wiring should not be treated as an afterthought. Heat, vibration, oil exposure, and harness rubbing can damage regulator wiring or terminals. Check for spread pins, corrosion, broken wire strands near the connector, and harness contact points. A connector that looks acceptable from the outside can still have poor terminal tension.
A Practical Diagnostic Order
Start with the basics: verify fuel level, inspect the fuel filter and housing, and look for wet fittings, loose clamps, damaged lines, or signs of air entering the system. If service history is unknown, a quality fuel filter is inexpensive insurance and a sensible first step when restriction is suspected.
Next, scan for codes and record live data while cranking, idling, and, when safe, under load. Do not clear codes before recording freeze-frame information. It may show engine temperature, RPM, commanded rail pressure, and actual rail pressure at the moment the fault occurred.
Then inspect the regulator electrical circuit and test it according to the proper factory procedure for that engine. Resistance checks can identify an open or shorted circuit, but they do not prove a regulator is mechanically healthy. A valve can pass a basic electrical test and still stick or leak internally.
If the data points to a high-pressure problem, move on to the appropriate return-flow and pump-performance testing. This is where experience saves money. Replacing injectors, a pump, a rail sensor, and a regulator one at a time is not a repair strategy. It is expensive parts swapping.
When Replacement Makes Sense
Replace the fuel pressure regulator when testing supports an internal or electrical failure, or when contamination or damage makes it unreliable. Use a quality, application-correct part. Cheap fuel-system components can create repeat failures, poor calibration response, and more downtime than the original problem.
When installing a regulator, keep the work area exceptionally clean. Common-rail diesel fuel systems operate at extreme pressure, and even small amounts of dirt can damage precision components. Follow the correct torque specification, use required seals or O-rings, prime the low-pressure side as required, and clear any air from the system using the correct procedure.
After repair, verify actual and desired rail pressure again. A truck that starts and idles is not automatically fixed. Confirm the repair through a road test under the conditions that caused the complaint, particularly if the original symptom appeared while towing or accelerating hard.
Do Not Ignore Low Rail Pressure
A minor hesitation can become a stranded truck if low rail pressure progresses to a no-start. More importantly, continuing to operate a truck with a fuel-system fault can complicate the repair if it contributes to pump damage or masks an injector problem. The sooner the pressure data is checked, the better the odds of repairing the actual cause instead of replacing parts based on a code.
For owners who depend on their Duramax to haul, tow, or make a living, the right approach is straightforward: verify fuel supply, compare commanded and actual rail pressure, and test before buying parts. That shop-floor process is how you protect uptime and keep a manageable fuel-system issue from turning into a much larger repair.
