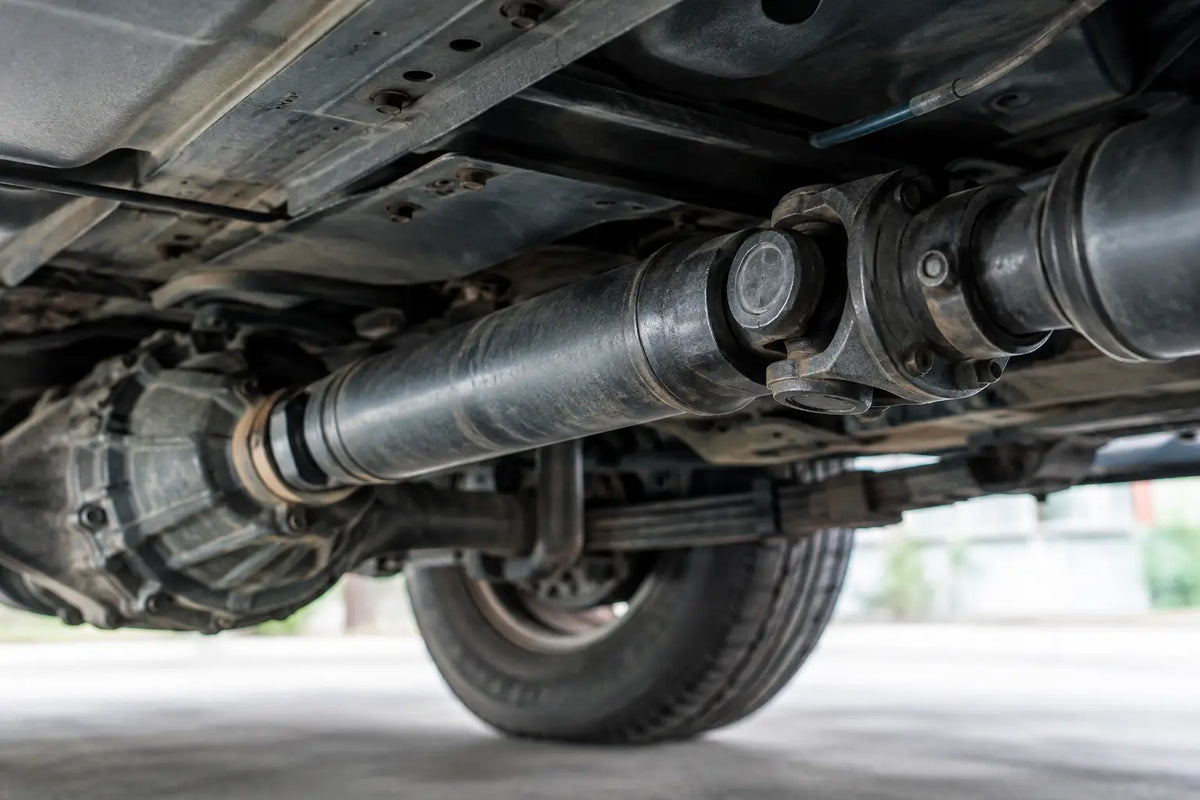

A vibration that shows up at 55 mph, gets worse under throttle, then fades when you let out of the pedal is not just an annoyance. It is a clue. Driveline vibration causes are often mechanical issues that start small, then take out U-joints, pinion bearings, transfer case components, or a driveshaft if they are ignored. For a diesel truck that tows, hauls, or works for a living, catching the pattern early can prevent expensive downtime.
The key is separating a true driveline vibration from an engine, tire, suspension, or wheel problem. Driveline issues normally follow vehicle speed, load, and driveline angle. They may be felt in the seat, floor, console, or through the truck's structure rather than mainly in the steering wheel.
Start With When the Vibration Happens
Before replacing parts, pay attention to the conditions that trigger it. A vibration at one narrow speed range can point to driveshaft balance, while a shake that appears only when accelerating often points to U-joint operation angles, worn joints, or a problem in the differential or transfer case.
If the vibration changes when you shift from two-wheel drive to four-wheel drive, that matters. If it appears only while towing, under hard acceleration, or after a lift kit installation, that matters too. These details narrow the inspection quickly and keep you from throwing parts at a truck that needs a proper diagnosis.
A tire or wheel issue commonly creates a steady vibration that follows road speed and may be strongest in the steering wheel or seat. A driveline issue can feel more like a hum, shudder, boom, or low-frequency vibration through the cab. It may also change dramatically when engine torque is applied or removed.
Common Driveline Vibration Causes
Worn, seized, or loose U-joints
U-joints are one of the first places to inspect, especially on a truck with miles, towing history, larger tires, or a lifted suspension. A worn U-joint can have visible play, rust powder around the bearing caps, missing clips, cracked seals, or a dry and binding movement. But a U-joint does not need obvious looseness to cause trouble. A joint that has begun to seize can create a vibration under load because it no longer moves smoothly through its operating angle.
With the truck safely secured and the driveline unloaded as appropriate, check for movement at each joint. Look closely at the cap seating and retaining clips. A cap that has walked in the yoke, even slightly, can create a serious balance and alignment issue. On trucks used in salt, mud, or off-road conditions, corrosion around the caps deserves extra attention.
Incorrect driveshaft angles
Lift kits, worn suspension components, overloaded leaf springs, and improper pinion angle can all change how the driveshaft runs. Universal joints are designed to operate at an angle, but the working angles need to be correctly matched. When they are not, the driveshaft can create a cyclic vibration that gets more noticeable as vehicle speed rises.
This is a common issue on lifted Cummins, Duramax, and Powerstroke trucks. The truck may drive fine around town but develop a pronounced vibration at highway speed or while towing. The fix is not always a new driveshaft. Depending on the setup, the answer may be correcting pinion angle, addressing sagging rear springs, installing the correct shims, or using a properly engineered shaft arrangement for the truck's ride height and suspension design.
Do not assume a lift kit is the problem simply because the vibration started after installation. Loose U-bolts, incorrect carrier-bearing height, damaged joints, or a driveshaft installed out of phase can produce similar symptoms. Measure before making changes.
Driveshaft balance or physical damage
A driveshaft rotates fast enough that a minor balance problem can become very noticeable at highway speed. Missing balance weights, dents from trail debris, bent tubing, mud packed inside a shaft, or a damaged slip yoke can all create vibration. A shaft can also be bent by a failed U-joint or by improper towing and recovery practices.
Inspect the full length of the shaft. A small dent may not look dramatic, but its location and severity matter. Check for thrown balance weights, fresh shiny contact marks, and signs that the shaft has touched a crossmember, exhaust, or fuel tank shield. On two-piece shafts, inspect both sections rather than focusing only on the rear shaft.
A driveline shop can check runout and balance a shaft properly. That is usually a better move than guessing, particularly on a truck with a modified suspension, custom-length shaft, or repeated vibration history.
Carrier bearing failure on two-piece shafts
Many heavy-duty pickups and work trucks use a two-piece rear driveshaft with a center support bearing. When that carrier bearing wears, the rubber isolator separates, or the mount loses its correct position, the shaft can move where it should not. The result may be a shudder on takeoff, a vibration under load, or a thump during shifts.
Carrier-bearing preload and height matter. Simply bolting in a replacement bearing without checking shaft alignment can leave the original problem in place. This is especially true after lift modifications, transmission work, or a driveshaft replacement. A bearing may be new, but if the shaft geometry is wrong, it will not last.
Transfer case, transmission, and differential problems
Not every driveline vibration comes from the driveshaft itself. A worn transmission output bearing, transfer case output bearing, pinion bearing, or axle bearing can allow movement that changes shaft alignment. Leaking seals at the transfer case or differential pinion are worth investigating, especially if they are paired with noise, play, or vibration.
A pinion bearing problem often brings a whine or growl that changes with throttle position. A transfer case issue may become more apparent in four-wheel drive or under heavy load. If the vibration is accompanied by a clunk when shifting between drive and reverse, inspect the full system for excessive backlash, loose mounts, worn slip splines, and movement at the yokes.
Driveshaft phasing or assembly errors
A driveshaft that has been separated for service must be reassembled in the correct phase. On a slip-style shaft, the yokes are designed to line up in a specific relationship. If the shaft is assembled one spline off, it can create a vibration that feels very much like a balance issue.
This mistake can happen after transmission, transfer case, or U-joint work. Marking shaft sections before disassembly prevents it. If a vibration began immediately after repairs, do not overlook the basics: correct shaft orientation, proper fastener torque, seated U-joint caps, and the right flange hardware.
How Load Changes the Diagnosis
Throttle-sensitive vibration is one of the best diagnostic clues. A vibration that is strongest on acceleration and settles on coast-down may point toward pinion angle, a binding U-joint, worn slip splines, carrier bearing movement, or differential-related trouble. A vibration that remains nearly unchanged whether you are on or off the throttle is more likely related to shaft balance, wheel speed, tires, or bearings.
Towing adds another layer. Tongue weight and payload can change rear ride height and driveline angle. A truck that feels smooth empty but vibrates with a loaded trailer may have a marginal angle problem, worn rear springs, or a carrier-bearing setup that is no longer properly aligned. The answer could be suspension correction, but it should be based on measurements, not assumptions.
A Smart Inspection Order
Start with the easy evidence. Check tire condition, wheel weights, lug torque, and obvious suspension looseness. Then inspect the driveshaft, U-joints, slip yokes, carrier bearing, flanges, and mounts. Look for leaks at transmission, transfer case, and differential outputs, then check for play where it should not exist.
After that, consider geometry and balance. Measure operating angles on modified trucks and inspect shaft runout if the vibration is speed-specific. If a joint failed recently, do not stop at replacing the joint. Find out why it failed. A new U-joint installed into a damaged yoke or run with incorrect angles is only buying time.
At Gillett Diesel Service, we have seen plenty of trucks where the failed part was obvious, but the condition that killed it was not. That difference is what separates a repeat repair from a lasting repair.
Do Not Keep Driving Through a New Vibration
A mild vibration can turn into a broken U-joint, damaged transmission tail housing, cracked transfer case, or driveshaft failure with very little warning. If the vibration suddenly gets worse, is joined by clunking or grinding, or occurs after driveline work, park the truck and inspect it before putting more miles on it.
Your truck is already telling you where to look. Pay attention to speed, load, drive mode, and recent changes, then let those facts guide the repair. A careful diagnosis protects the parts that keep your diesel working when you need it most.
