A diesel engine compression test is not a maintenance item you perform just because the truck has miles on it. It is a diagnostic test for when something has changed: a Cummins that cranks too long cold, a Duramax with haze at idle, a Powerstroke that is down on power, or a work truck that suddenly has more crankcase pressure than it should. Done correctly, compression testing can separate an internal engine problem from a fuel, air, electrical, or emissions issue before money gets spent in the wrong place.
For diesel owners who tow, haul, plow, or depend on a truck for daily work, that distinction matters. Injectors, high-pressure fuel components, turbochargers, and sensors can all create symptoms that resemble low compression. A test gives the technician a better place to start, but the numbers only mean something when they are collected and interpreted correctly.
What a Diesel Engine Compression Test Measures
A diesel engine relies on compression heat to ignite fuel. As the piston comes up on the compression stroke, it squeezes the air in the cylinder hard enough to raise its temperature. Fuel injected into that hot air ignites without spark plugs.
A compression test measures the pressure a cylinder can build while the engine is cranked. Low pressure in one cylinder can point to a burned valve, damaged piston, broken ring, cylinder-wall damage, or a sealing issue at the head gasket. Low readings across every cylinder may indicate general engine wear, incorrect valve timing, a slow cranking speed, or a problem with the testing method.
The key word is comparison. The highest number on the gauge is useful, but the spread between cylinders is usually more useful. A healthy engine should have reasonably even cylinder pressures. The acceptable range depends on the engine family, model year, compression ratio, altitude, cranking speed, and the manufacturer’s specification.
That is why there is no single "good compression" number for every diesel. Applying a generic internet number to a 5.9L Cummins, 6.6L Duramax, 6.0L Powerstroke, or medium-duty engine is a fast way to draw the wrong conclusion.
When Compression Testing Makes Sense
A compression test is worth considering when the truck has symptoms that fuel-system repairs do not explain. Hard cold starting is one of the most common reasons, especially when glow plugs, intake heaters, batteries, starter performance, and fuel delivery have already been checked.
Excessive blow-by is another reason. Some vapor at the oil fill or crankcase vent is normal on a diesel, particularly one with substantial working miles. Heavy pulsing, oil mist, or pressure strong enough to push the cap around can indicate combustion gases getting past the rings. Compression testing alone does not prove ring failure, but it can help determine whether the concern is isolated to one cylinder or spread throughout the engine.
Blue smoke, persistent white smoke after warm-up, an uneven idle, low power, oil consumption, or a dead-cylinder complaint can also justify testing. On a fleet truck, the decision is often about uptime. If the engine has a repeat misfire, poor starting, and no clear fuel or electrical fault, testing compression can prevent repeated parts replacement with no repair plan.
Why the Test Is More Involved on Modern Diesels
Testing a gasoline engine is usually straightforward. A diesel engine compression test often is not. Diesel compression is much higher, so it requires a gauge and adapter designed for diesel pressures. The correct adapter must fit the engine’s glow-plug, injector, or dedicated test-port configuration without damaging threads or creating a leak.
Access is another challenge. On some platforms, glow plugs are the practical entry point. On others, injector removal may be necessary, which adds labor, sealing requirements, and contamination risk. Modern common-rail fuel systems also demand caution. Removing or loosening high-pressure fuel components without the right procedure can be dangerous and can create expensive problems.
The engine must also be prevented from starting while it is cranked for the test. Depending on the application, that may involve disabling fuel injection through scan-tool commands, disconnecting appropriate components, or following a manufacturer procedure. Guesswork is not acceptable here. A diesel that starts with a compression gauge installed can damage the tool, the engine, or the person standing over it.

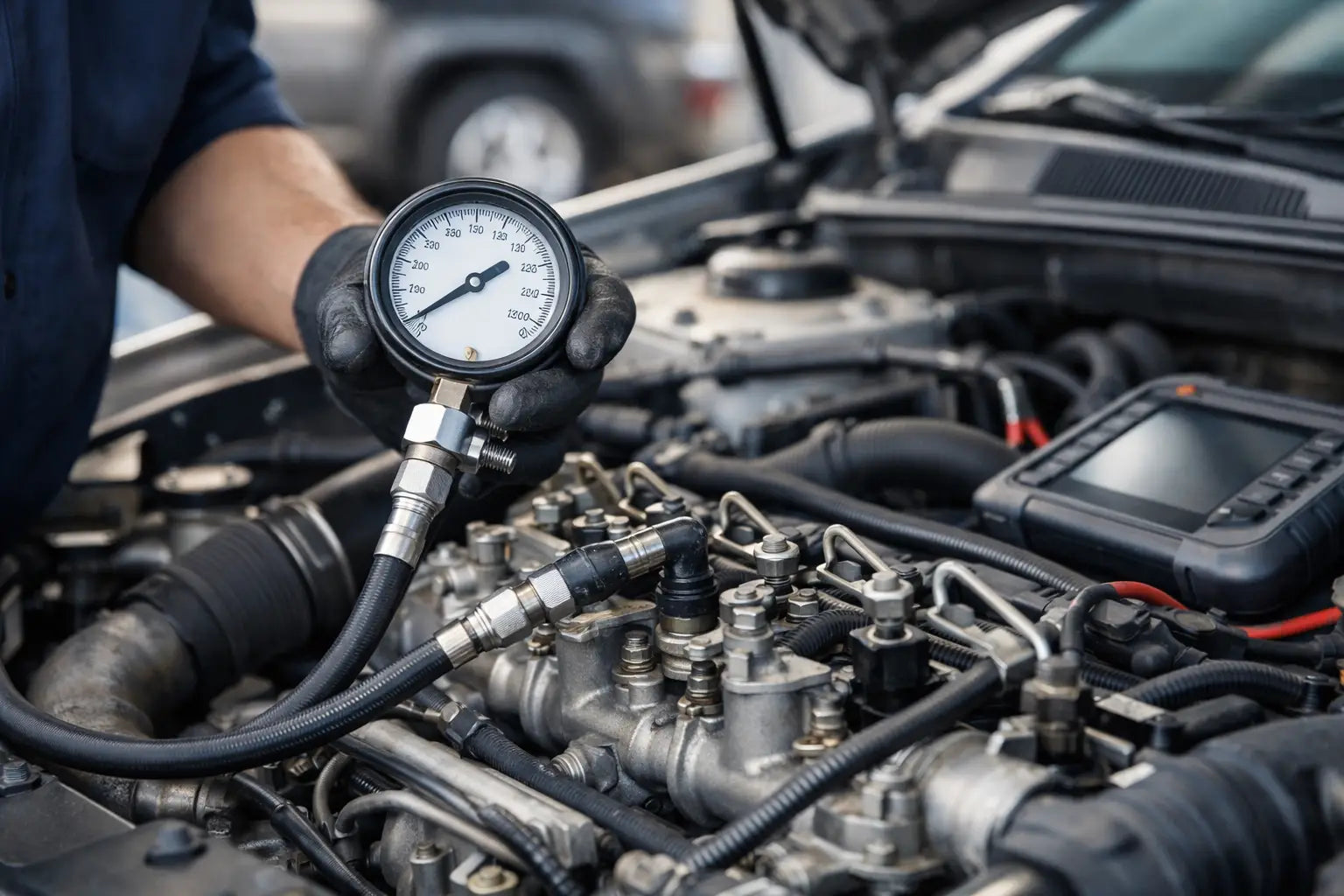

How a Proper Compression Test Is Performed
The exact process changes by platform, but the fundamentals stay the same. A useful test starts with a strong electrical system. Weak batteries, poor cable connections, or a dragging starter reduce cranking speed, and lower cranking speed can produce misleading compression readings.
A thorough shop procedure generally includes these steps:
- Verify battery state of charge, cable condition, and starter cranking speed before testing.
- Bring the engine to operating temperature when possible, then disable fuel and prevent the engine from starting.
- Remove the approved glow plug, injector, or test plug and install the correct diesel compression adapter.
- Crank each cylinder for the same number of compression strokes, record readings, and compare them to the factory specification and one another.
On electronically controlled engines, a scan tool can add valuable context. Cranking RPM, rail pressure, synchronization data, cylinder balance information, and active diagnostic codes may explain a no-start or rough-running issue without opening the engine. Compression testing works best as part of a diagnosis, not as a stand-alone verdict.
Reading the Results Without Jumping to Conclusions
One low cylinder deserves attention, but it does not automatically mean the engine needs an overhaul. A low reading may be caused by a valve that is not sealing, a damaged valve seat, worn rings, a cracked piston, or a localized head-gasket failure. The next step is identifying where that cylinder is losing pressure.
If all cylinders are low but even, first confirm the test setup. Slow cranking speed is common. So are incorrect adapters, a gauge that does not seal, or testing an engine that has a valve-timing problem. Uniformly low readings can also reflect normal wear on a high-mileage engine, but only after the known test conditions and factory specifications have been checked.
A large difference between cylinders is usually more concerning than a modestly low overall number. For example, an engine may crank and run acceptably with all cylinders slightly below new-engine specification. One cylinder substantially below the rest is more likely to create a rough idle, hard start, smoke, or a contribution problem.
Oil in the cylinder can sometimes help narrow the direction of the diagnosis, but this approach is less straightforward on a diesel than it is on a gas engine. Adding oil through a glow-plug or injector opening can be risky, may affect the reading, and can create concerns with combustion or engine damage if handled improperly. It should not be treated as a casual driveway test.
Compression Testing vs. Leak-Down Testing
Compression testing tells you how much pressure the cylinder builds during cranking. A cylinder leak-down test introduces regulated air into a cylinder at top dead center on the compression stroke and helps identify where pressure is escaping.
Air heard at the intake can suggest an intake-valve sealing problem. Air from the exhaust points toward an exhaust valve. Air at the oil fill or crankcase vent may indicate ring, piston, or cylinder-wall leakage. Bubbles in the cooling system can raise concern about head-gasket or cylinder-head damage.
Leak-down testing can be more revealing than a compression gauge, but it also requires accurate piston positioning and the right equipment. On a high-compression diesel, a technician needs to secure the engine properly because shop air can force the engine to rotate if the cylinder is not exactly at top dead center. In many cases, compression and leak-down tests work together: one identifies the weak cylinder, and the other helps locate the leak.
Do Not Overlook the Systems Around the Engine
Many trucks get labeled as "low compression" before basic checks are finished. A restricted fuel supply, injector issue, failed glow plug, weak grid heater, low cranking RPM, air intrusion, incorrect cam/crank synchronization, or insufficient rail pressure can create long-crank and no-start complaints without an internal engine failure.
The same applies to smoke and power loss. A sticking VGT turbo, boost leak, EGR problem, restricted exhaust, or fueling issue can make a healthy long block feel tired. Real diesel diagnosis starts with the complaint, verifies the simple and external causes, then moves inside the engine when the evidence supports it.
At Gillett Diesel Service, that service-bay approach matters because the right repair may be a fuel-system component, an air-management repair, or internal engine work. The goal is not to sell the largest repair. The goal is to identify the failure accurately and get the truck back to reliable service.
A diesel engine compression test is a powerful tool when the truck gives you a reason to use it. Start with sound batteries, correct test equipment, platform-specific specifications, and a full look at the fuel and air systems. That is how you turn a gauge reading into a repair decision you can trust.
