A diesel that starts hard on Monday, loses power under load on Wednesday, and lights the check engine lamp on Friday is not asking for random parts. It is leaving a trail. Proper diesel diagnostics follows that trail from the driver’s complaint to testable evidence, then to the failed part or system.
That approach matters whether the truck is a daily-driven 6.7L Cummins, a working Duramax, a Powerstroke used for towing, or a fleet unit that cannot afford to sit. Modern diesel trucks are tightly connected systems. A low fuel-pressure reading may be caused by a supply restriction, an injector leak, a wiring fault, a weak battery, a bad sensor, or a commanded derate. Replacing the most obvious component without proving the cause can turn one repair into several expensive ones.
Diesel Diagnostics Begins Before the Scan Tool

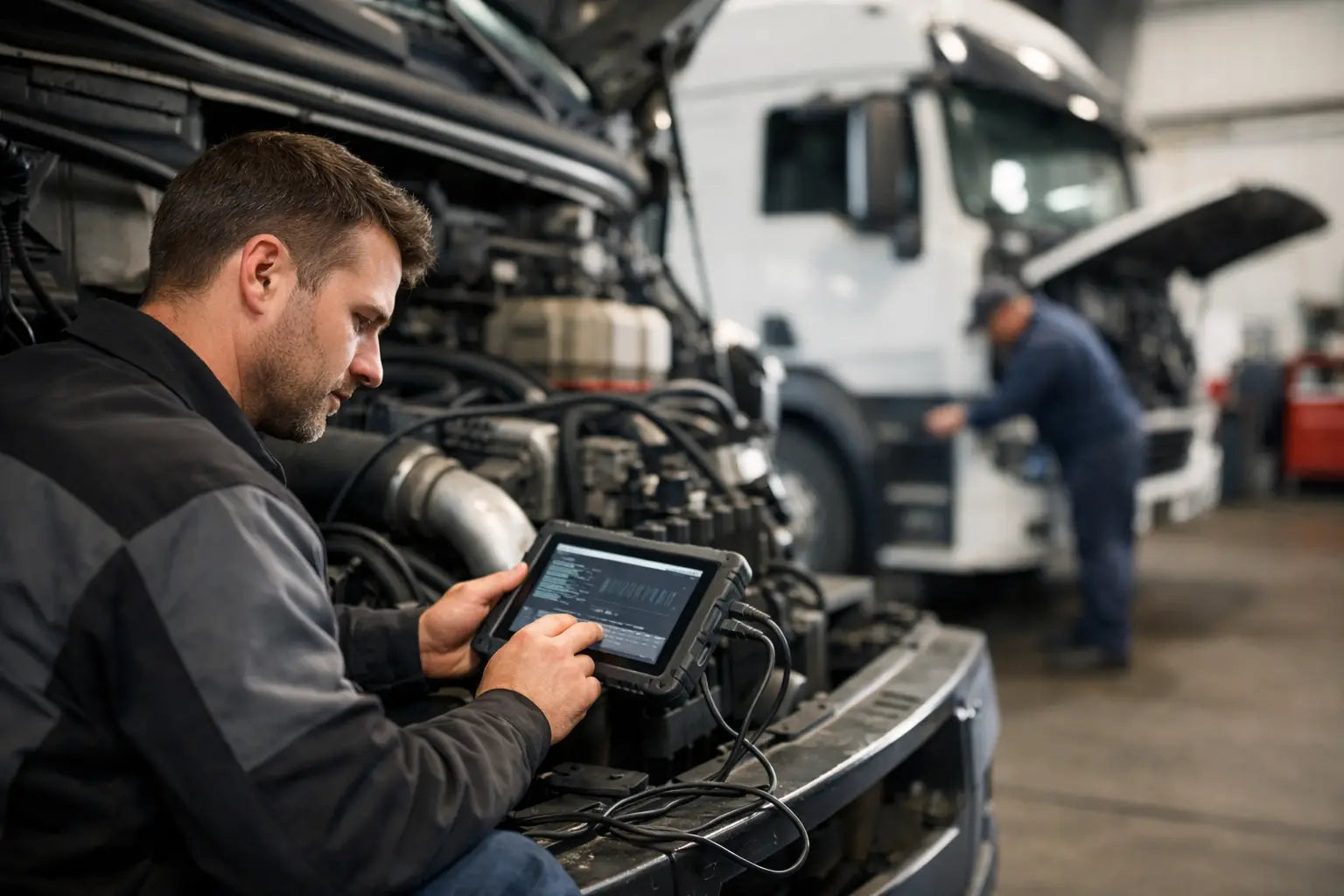

A scan tool is necessary on late-model diesel trucks, but it is not the first step. The first step is getting a precise description of the problem. “Runs rough” is a starting point, not a diagnosis. Does it run rough cold, hot, only at idle, or only while towing? Did the issue appear immediately after a fuel fill-up, a repair, a long storage period, or an emissions-system warning? Is there smoke, a fuel odor, an exhaust leak, an unusual whistle, or a change in transmission behavior?
The answers narrow the path quickly. A truck that cranks slowly after sitting overnight needs a different inspection than one that cranks normally but will not build rail pressure. A truck that falls flat on a hill may have a boost leak, restricted fuel supply, VGT turbo issue, exhaust restriction, or an active torque reduction strategy. The driver’s details help separate symptoms from assumptions.
Start with the basics that are easy to overlook: battery condition, terminal connections, grounds, fluid levels, visible leaks, damaged wiring, loose charge-air boots, and the condition of the fuel filter and air filter. This is not old-fashioned guesswork. Low voltage can create communication faults and false sensor behavior. A split intercooler boot can look exactly like a major turbo failure. A restricted fuel filter can mimic an injector or high-pressure pump problem.
Read Codes, Then Read the Data
Diagnostic trouble codes point to a circuit or system that needs attention. They do not automatically identify the part that needs replacement. A code for low boost does not prove the turbocharger is bad. A code for a fuel-rail pressure problem does not prove the rail pressure sensor is bad. The computer only knows that the measured result did not match the expected result.
A complete scan should capture active codes, pending codes, history codes, freeze-frame information, and live data. Freeze-frame data records operating conditions when a code set: engine speed, load, coolant temperature, vehicle speed, commanded values, and actual values. That context is often where the real story begins.
Live data lets a technician compare what the engine control module wants against what the system delivers. Useful comparisons include commanded versus actual rail pressure, desired versus actual boost, mass air flow, exhaust gas temperatures, turbo vane position, injector balance information where applicable, and differential pressure across the DPF. One number by itself can mislead. The relationship between several readings, measured during the same operating condition, is what makes the data useful.
For example, if actual rail pressure stays well below commanded pressure during a hard acceleration, the next question is not “Which injector should we order?” The next question is whether the low-pressure supply side is feeding the high-pressure system correctly, whether there is an external or internal leak, whether the pressure-control system is responding, and whether the readings are trustworthy. Testing should eliminate possibilities, not add parts to the invoice.
Fuel System Problems Need a Disciplined Process
Fuel-system work is where parts swapping gets costly in a hurry. Common symptoms such as hard starts, extended cranking, low power, surging, misfires, and low rail pressure can come from contaminated fuel, air entering the supply side, a restricted filter, weak lift-pump performance, leaking injector return flow, failed injectors, pressure-control faults, or high-pressure pump damage.
The process depends on the platform and engine generation. A fuel-pressure gauge or approved electronic measurement can verify supply performance. A fuel sample can reveal water, gasoline contamination, debris, or poor fuel quality. Return-flow testing can help identify excessive injector leakage on applicable systems. A properly performed crankcase inspection and fuel-system inspection may also reveal whether a failure has created contamination that reaches beyond one component.
High-pressure common-rail systems demand clean procedures and the correct tools. These systems operate at pressures that can cause serious injury and expensive damage if handled carelessly. If a high-pressure pump has failed and distributed metal through the fuel system, replacing only the pump is rarely a repair that holds. The tank, lines, rails, injectors, filters, and related components may need inspection or replacement based on the platform’s approved repair path.
Air, Boost, and Exhaust Faults Can Feel the Same
Diesel engines need clean, measured air and controlled exhaust flow. When either side is wrong, the driver usually feels reduced power, smoke, poor throttle response, or a truck that struggles with a load. The cause could be a leaking charge-air cooler, loose boot, failed clamp, sticking VGT mechanism, damaged turbocharger, faulty MAP sensor, restricted air filter, EGR concern, or exhaust restriction.
A visual inspection is useful, but a pressure test of the charge-air system is better. Small leaks may open only when the system sees boost. Oil residue around a boot or intercooler connection is a clue, not final proof, because some oil mist is normal in many intake systems. Pressure testing shows whether the system actually holds.
Turbocharger diagnosis also calls for restraint. Shaft movement, oil at the intake, and a low-boost code each require context. A failed actuator, damaged vane assembly, exhaust-side leak, or sensor issue can produce similar complaints. Before condemning a turbo, confirm boost readings, inspect the intake and exhaust paths, check actuator operation where applicable, and look for charge-air leaks.
Electrical Testing Is Not Optional
Modern diesel trucks depend on clean power, sound grounds, reliable communication networks, and accurate sensor signals. A weak battery may still start the truck but cause modules to behave unpredictably. Corrosion inside a connector can create an intermittent fault that disappears in the service bay. Harness damage near hot exhaust components, tight brackets, and vibration points is common on hard-working trucks.
This is where a wiring diagram, digital multimeter, and sometimes a lab scope earn their keep. Checking for voltage at a connector is not enough. Circuits should be tested under load when the failure calls for it, and grounds should be voltage-drop tested rather than simply inspected. A sensor can receive its reference voltage and ground yet return an incorrect signal because of internal failure or a mechanical issue affecting what it measures.
Do not ignore battery and charging-system health when several unrelated codes appear. Low system voltage can set off a chain reaction of communication, throttle, transmission, and emissions faults. Fixing the foundation first can prevent a long list of unnecessary repairs.
Aftertreatment Faults Require the Cause, Not a Shortcut
DPF, SCR, DEF, NOx sensor, and EGR systems are part of the truck’s operating strategy. When one component reports an issue, the truck may reduce power or limit starts to protect the system and meet emissions requirements. Deleting or bypassing those systems is not a legitimate diagnostic repair and can create legal, reliability, and resale problems.
The right question is why the system failed its test. A loaded DPF may be the result of frequent short trips, incomplete regenerations, excessive soot from an air or fuel problem, an EGR fault, a failed temperature sensor, or incorrect differential-pressure readings. Replacing the DPF without addressing the reason it loaded up can send the truck back with the same problem waiting down the road.
Use scan data to review soot load, ash accumulation, regeneration history, exhaust temperatures, pressure readings, DEF quality where supported, and sensor rationality. Some faults require a service regeneration after the underlying repair. Others require component testing or cleaning procedures. It depends on the platform, the code set, and whether the system can safely complete a regeneration.
Know When the Repair Needs Shop-Level Testing
A capable owner can inspect boots and wiring, service filters, check fluids, retrieve codes, and gather useful operating details. Those steps can save time and prevent simple failures from becoming major downtime. But certain work needs the equipment and experience of a diesel-focused shop: high-pressure fuel diagnosis, injector testing, turbo and VGT control analysis, advanced network faults, internal engine concerns, and emissions-system testing.
At Gillett Diesel Service, the difference is understanding what a part is supposed to do in the real system before recommending it. The correct repair may be a filter, sensor, boot, injector, turbocharger, wiring repair, or a broader fuel-system solution. What matters is having test results that support the decision.
The best diagnostic result is not a stack of codes cleared from the screen. It is a truck that starts cleanly, pulls hard, completes its required operating cycles, and goes back to work with the actual cause corrected.
